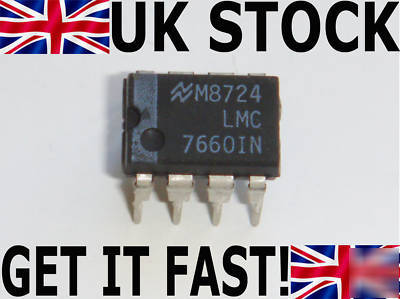

1 x LMC7660IN - switched capacitor voltage converter
1 x LMC7660IN - SWITCHED CAPACITOR VOLTAGE CONVERTER
Switched Capacitor Voltage Converter
The LMC7660 is a CMOS voltage converter capable of converting a positive voltage in the range of +1.5V to +10V to the corresponding negative voltage of 1.5V to 10V. The LMC7660 is a pin-for-pin replacement for the industry-standard 7660. The converter features: operation over full temperature and voltage range without need for an external diode, low quiescent current, and high power efficiency. The LMC7660 uses its built-in oscillator to switch 4 power MOS switches and charge two inexpensive electrolytic capacitors.
Operation over full temperature and voltage range without an external diode, Low supply current, 200 A max, Pin-for-pin replacement for the 7660, Wide operating range 1.5V to 10V, 97% Voltage Conversion Efficiency, 95% Power Conversion Efficiency, Easy to use, only 2 external components, Extended temperature range, Narrow SO-8 Package
DATASHEET - http://pdf1.alldatasheet.com/datasheet-pdf/view/9133/NSC/LMC7660IN.html
