Tektronix 5111 bistable storage oscilloscope & plugins
BISTABLE STORAGE OSCILLOSCOPE TWO 5A15N AND ONE 5B15N PLUGINS

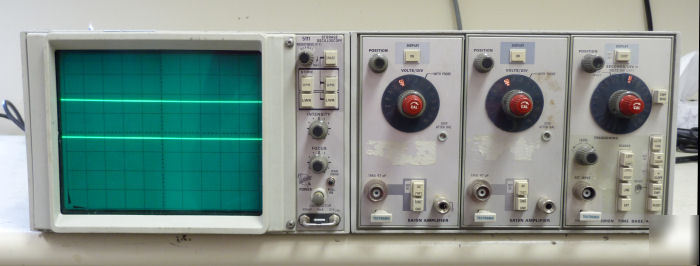

This is a Tektronix 5111 oscilloscope mainframe with two 5B10N amplifier and one 5B15N timebase plugins. Unit appears to be fully functional, the bistable storage tube retains a clear image with no fade-up or burns on the screen. Writing speed looks good. Upper and lower storage areas are independently controllable for store/non-store/erase modes. Amplifier sensitivity ranges from 1mV/div to 5V/div. Time base ranges from 1uS/div to 5S/div, plus 50mV and 0.5V/div. System bandwidth is 2MHz, so it is for low-frequency, slow-moving measurements, such as biological events, seismic phenomenon, and the like . Unit is being sold without warranty, but has been checked and is working correctly.
