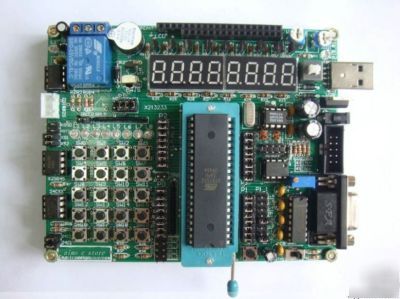

51 development learning board kit usb +1602+DS18B20
This 51 Experimental study of the single-chip to supporting the company's ATmel all AT89S series, but also support all STC series single-chip 51-enhanced and enhanced SST Series 51 Single-chip experiments, programming and simulation capabilities, supported by programming the number of chips as much as 100
programmer, emulator, target board, ISP download line four-in-one; direct support Atmel 89 series, AVR AT90S8515, Atmega8515, STC series single chip programmer.
IC:AT89S52, DS1302 clock chip, MAX232 chip communication,NE555 chip time base circuit,X5045 SPI interface chip,24C08 chip,
l HX1838 infrared remote sensor,
l DS18B20 the temperature sensor,
l LCD1602 LCD module (high contrast with backlight),
l DuPont line and related learning CD-ROM
51 to provide the following experiment;
l Button LED control experiment
l Digital tube display cycle experiment
l Experimental combination of button detection
l SPI interface to read and write storage X5045 experiment
l II2C memory chips to read and write AT24C02/24C08 experimental
l LCD1602 display English characters experimental
l MAX232 RS-232 communication experiment
l Clock timing control experiment
l TLC0832 and TLC0831 8-bit AD Acquisition Experiment (the circuit can be hardware adjusted)
l DS18B20 l temperature acquisitionexperimenta ; (DS18B20 temperature sensor + extended line)
l NE555 pulse count generated by the experiment
l 4X4 matrix keyboard ExperimentaL
l Keyboard independent experiments
l HX1838 Infrared Remote Control experiments
