Simple step ssxymicro microstepping stepper controller

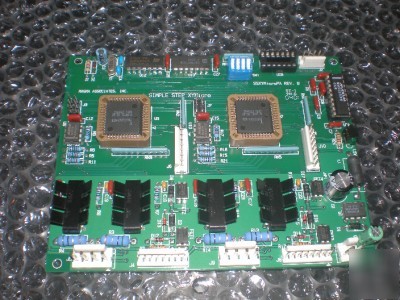

Simple Step SSXYMicro - Dual axis microstepping stepper controller.
* RTOS, 32 bit and 8K IEEPROM standard.
* 59 MHz Microprocessor Controller.
* Limit Switch Input (per axis).
* Optical Motor Home input (per axis).
* User programmable advanced acceleration and deceleration settings based on User Programmable Start Velocity, End Velocity and Slope. (per axis)
* User Programmable Full, 1/2, 1/4, 1/8, 1/16 and 1/32 step control (per axis).
* One (1) Bipolar Stepper motor drive (per axis).
* Single 15.0 - 50.0VDC operation.
* Up to 1.5 amp/phase, switching mode current controlled motor phase outputs (Software adjusted per axis).
* User Programmable Baud Rates (9600, 19.2K, 38.4K, 57.6K (default), 115.2K, 230.4K and 460.8K).
* Multiple boards on a single serial port and the ability to intermix Simple Step board types on the network
* Software network address switch select on every board.
* Simple Step Network RS232 and RS422/RS485 communications (jumper selectable).
* RS422/485 120 ohm balance resistors on board (jumper selectable).
* Option Connector for later add-on or custom boards.
* Two (2) User Controlled Open Collector Output Lines (2-500ma Sink) (per axis).
* Three (3) User Input Lines (per axis).
* Software Programmable Home Sensor Check (per axis).
* Diode protected Home and Limit Sensor.
* On Board 3.3VDC and 5DC volt switchers with Power LED.
* SSXYMicro board Size 5.3" x 4.2" x 0.6"
* Large Dynamic Velocity range (from 1 step per second to 30,000 steps per second) per motor.
* Prescaler installed on all units.
* Software Programmable Motor Power Settings (256 power levels!) (per axis)
* Synchronous Motor Movements with ALL SSCB , SSCBHC, SSMicro, SSXYQE, SSXYMicro, SSXYZMicro and SSXYZ Boards on the network (Up to 40 motors on 1 serial line)!
* Up to +/- 2,147,483,647 steps of motion.
* EMI (radiated) filtering on all boards to allow FCC and CE approvals.
* Simple ASCII command set allowing use of standard PC communications packages.
* Decimal or Hexadecimal ASCII numeric values can be used (per axis).
* 8000 Character IEEPROM program buffer (per axis for -3A and shared for -3B versions).
* Jog control for each axis (per axis).
* Single-ended Quadrature Encoder interface (per axis)
