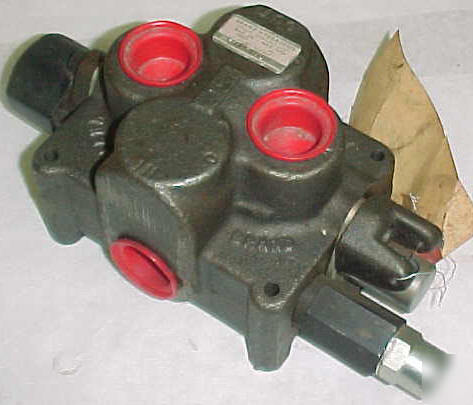

Brand hydraulics directional control valve DC100-C4-lbs
Brand Hydraulics Directional Control Valve
DC Series Directional Control Valve
1" NPTF All Ports, closed center 4-way spool, L style actuator but No handle,
high lift ball spring relief and spring center.
Rated for 0-45 gpm (0-170 lpm).
20-Micron filtration recommended.
The The Brand DC directional control valve can be used in series but the spool is difficult to shift when there is tank pressure. The DC offers an optional high lift ball spring relief to take the place of the standard pilot operated relief on the DCF. The manual handle provides metering to either port. The tank port must be plumbed directly back to tank.
