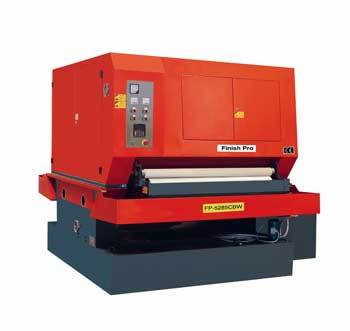

52" w finish pro fp-5285W belt grinder, wet type metal
52" W Finish Pro FP-5285W BELT GRINDER, WET TYPE METAL
52" Width Finish Pro FP-5285W BELT GRINDER, WET TYPE METAL SANDER/DEBURRING/FINISHING
NEW Finish Pro 52" x 85" Wet Type Metal Sander/Deburring/Finishing Machine
Motorized Table Lift, with digital control
Inverter drive variable Speed Conveyor
Electronic Eye Belt Tracking. Belt tracking
adjusting lever ( Belt Trimmer ) to Re-adjust the
tracking system when running extremely out of
Safety System with Disc Brake. Air operated disc brakes
to stop sanding head in 3-5 seconds in the even of loss
of air pressure or activation of any emergency stop device
Operation manual, control tags, danger signs, and warning labels in English on machine
Contact Roller Size 9-1/2 Diameter
Thickness Capacity 0.04 - 1-1/2
Conveyor Drive Speeds 6-40 FPM
Belt head motor 40 HP, 230V / 460 V, 3-ph
Conveyor Motor 3 HP, 230V / 460V, 3-Ph
Coolant /filter Motor 2 HP, 230V/ 460V, 3-Ph
Air dryer Motor 7.5 HP , 230V/ 460V, 3-Ph
Machine Weight, approx. 9,850 LBS
Machine Dimensions, LxWxH 110 x 92 x 89
