Hp agilent 8657B 2.06GHZ signal generator option 022
HP - Agilent 8657B 2.06Ghz Signal Generator plus Option 022
HP / Agilent 8657B Synthesized Signal Generator, 100 kHz to 2060 MHz
With Option 003 Plus 8657 0.3 GMSK Option 022 Modulation Unit
Units power on with no errors unable to test beyond this
Good cosmetic condition / physical condition
Units have not been calibrated

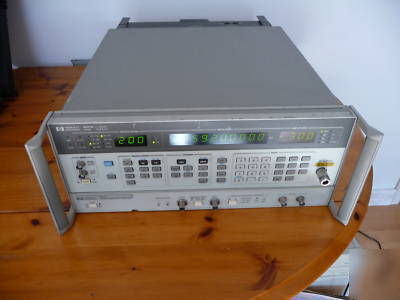

Unit has carry handles fitted to the sides and front as shown
The HP / Agilent 8657B offers excellent performance at an economical price. The low residual FM and excellent phase noise performance of the 8657B signal generator makes them ideal for many in-channel and even out-of-channel receiver tests. The 8657B is a versatile signal generator offering a variety of features, such as extended frequency coverage up to 2060 MHz, pulse modulation, simultaneous and mixed modulation combinations of AM and FM, as well as a carrier phase adjust capability that allows you to characterize phase-sensitive devices. In addition, the 8657B offers a wide output range, +13 to -143.5 dBm with superior level accuracy of 1.0 dB. Built to stringent quality standards, the 8657B will promote consistent, repeatable measurements every time
http:// /datasheets/HP8657AB.pdf
