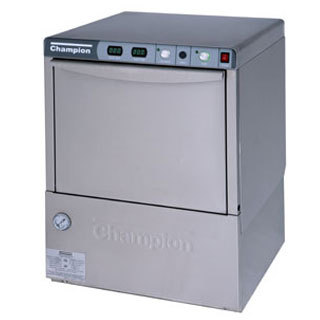

Champion uh-200B(40) dishwasher, undercounter, 30 racks
Dishwasher, Undercounter, 30 Racks Per Hour, High Temp, With 40 Degree Rise Booster
Dishwasher, undercounter, high temperature, built-in booster heater w/40 rise, 30 racks per hour cap., 1 hp pump motor, top mounted controls, door safety switch, s/s top & side panels, pumped drain, (1) dish rack (peg) & (1) flat rack (open), includes detergent & rinse aid pump, digital thermometer, ENERGY STAR
* Undercounter High Temperature Dishwashing Machine with Built-in Booster Heater
* Standard 20" x 20" [508 x 508] Rack Complement: Dish 1 Open 1
* Features 90 second total cycle, extended wash, LED temp display, Rinse Sentry, rinse aid and detergent pumps, flexible fill and drain hoses, stainless steel top and side panels. Constructed of Type 304 stainless steel
* Rinse Sentry - extends the cycle time to ensure 180 deg F final rinse
* Built-in electric booster for 180 deg F final rinse water (standard 40 deg F or optional 70 deg F
* Low-water tank heat protection
* Detergent and rinse aid pumps
* Quiet double-wall construction
* Independent stainless steel interchangeable upper and lower wash and rinse arms
* Top mounted slide-out controls
* Stainless steel top and side panels
* 90-second total cycle time
* Extended wash for difficult ware cleaning & de-liming
* Prime switch on control panel
* Water consumption: U.S. Gal. (Max. use) per hr. 27.9
* Hot Water: 1/2" supply 140 deg F min. hot water connection for 40 deg F rise booster 110 deg F min. hot water connection for 70 deg F rise booster
* Temperatures deg F: Wash 150 Rinse 180
* Machine equipped with 3/4" [19] hose connector
* 115/208-240/60/1 3 wire plus ground, (See specs)
* 115/208-240/60/3 4 wire plus ground, (See specs)
* Plumbing and electrical connections should be made by qualified personnel
* who will observe all the applicable plumbing, sanitary and safety codes and the National Electrical Code
* Manufacturer: Champion Industries, Inc.
* Depth: 40 1/2" (includes 14 3/4" door clearance)
