> Snow/moisture switch w/cast iron deep round floor box
Snow/moisture switch w/cast iron deep round floor box
YOU WILL NOT FIND THIS PRODUCT
http:// /mwistore/display.php?RecordID=1240866109
http:// /product_info.php?products_id=2448
http://secure.linkxstar.com/shop/radiant-snow-and-ice-melting/promelt-heating-cable-and-mats/promelt-controls/promelt-pm-hsc5-snow-sensor-24v/p-13243-v-20070917002.htm?tptm=pf
Automatic Deicing Control Saves Energy

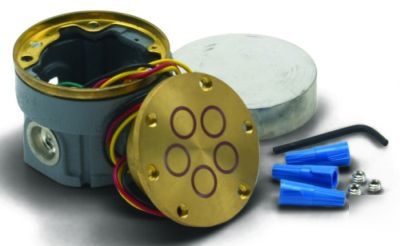

MODEL HSC 5 Brass PAVEMENT-MOUNTED
Complete with HSC 5 Sensor/Controller subassembly and
Hubbell Scrubshield Floor Box B2519 Cast IronPavement Mounted Junction Box
Go to http:// /pdfs/hsc45_20932.pdf for Instruction Manual
Control based upon pavement conditions
Rugged construction to help ensure complete snow and ice melting.
The HSC 5 Pavement-Mounted Deicing Controller reliably operates snow and ice melting heaters
based upon pavement condition. This ensures that deicing heaters operate only while
needed which minimizes energy costs without sacrificing snow melting effectiveness.
The HSC 5 signals for snow and ice melting at pavement temperatures
below 38 F (3.3 C) while moisture in any form including water, snow, sleet
or ice is present. Once the moisture element has dried, the built-in, five hour
hold-on timer keeps heaters operating to help ensure complete snow and ice melting.
The HSC 5 accurately measures pavement temperature by compensating
for its internal heating. This eliminates the cost and complexity of a separate
pavement temperature sensor. For improved effi ciency, products mount
close to the deicing heaters to ensure that pavement and sensor become dry
at about the same time.The new mounting system provides accurate alignment with the
pavement surface. Six available conduit locations add to installation fl exibility and simplicity.
The sensor subassembly is field replaceable without disturbing
supplied 24 volts AC. The output signal, or call-for-heat, is a fl oating Form A
low voltage 1 amp relay contact for interfacing external heater control
contactors. Only brass, epoxy, and stainless steel are exposed to the pavement
surface. Precision machining gives these products a handsome appearance
that will please the building owner, engineer, and architect.
Includes Hubbell Scrubshield B2519
Cast Iron Floor Box For Pavement/Outdoor Mounting
Durable Hubbell metallic floor boxes are offered in cast iron and stamped steel. Exclusive Hubbell design features make them easy to adjust both before and after the pour. Sizes will meet any capacity need, and Hubbell offers service fittings that work equally well in tile or carpeted applications
