> Cleveland mkgl-40-t kettle/mixer, gas, 40 gallon, 2/3 s

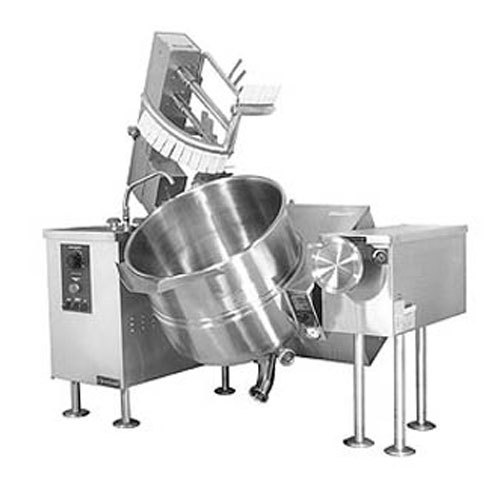

Cleveland mkgl-40-t kettle/mixer, gas, 40 gallon, 2/3 s
Kettle/Mixer, Gas, 40 Gallon, 2/3 Steam Jacket, Tilt Type, Automatic Ignition
One year limited warranty, standard -view pdf
Kettle/Mixer, Gas, 40-gallon capacity, 2/3 steam jacket design, tilt-type, automatic ignition, solid-state temperature control, power on/off switch, variable ration control between scraper & agitator, open leg base, s/s construction
* MIXER KETTLES, GAS-FIRED VERTICAL AGITATOR TILTING, 2/3 STEAM JACKETED
* Cleveland Standard Features
* High Efficiency (65%) Forced Air Double Pass Heating System. 140M BTU on 40 gallons, 190M BTU on 60 and 80 gallons
* Automatic Ignition System and 50 psi Steam Jacket Rating
* Enclosed, Balanced 10 gauge Stainless Steel hydraulically operated mixer-bridge
* Steam Jacket permanently filled with treated distilled water
* Recessed, front-mounted Pressure/Vacuum Gauge
* Solid-State, precise temperature controls with less than 1 C temperature differences. LED indicator for Heat Cycle and Low Water Indicator, Power On/Off Switch
* Infinitely Variable Ratio Control between Scraper and Agitator. Agitator rotates from 0 to 8 times the speed of the Scraper. Infinitely Variable Scraper Speed Controls from 0 to 45 RPM
* 3-horsepower hydraulic powered Agitator, Scraper and Bridge Lift. Nylon Scraper Blades removable without tools
* 3? diameter Quick Opening Butterfly Valve
* Tilt Mechanism of roller bearings and case hardened self-locking machined worm and segment gear
* Standard for natural gas operation, standard voltage is 120/208-240, 3 phase
* Level adjustable flanged feet, Gallon markings on Scraper Shaft
* Typical approvals include AGA, CSA, CE, NSF and ASME
