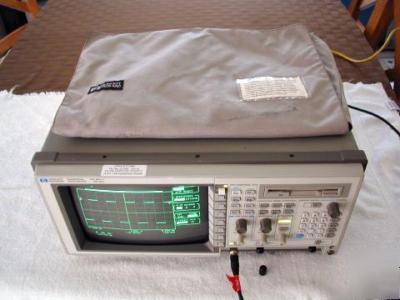

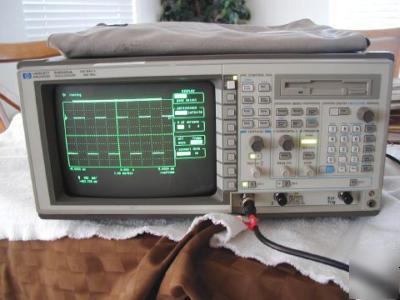

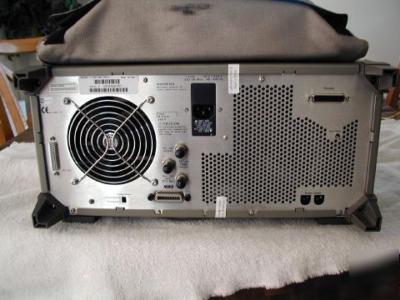

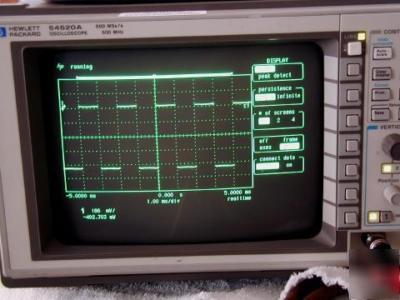

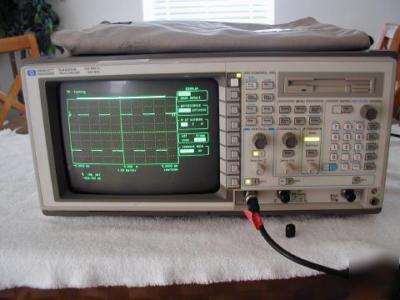

Hp - agilent 54520A 500 mhz oscilloscope w/extras
The Agilent HP 54520A is one of our used Digitizing Oscilloscopes that has 2 Channels and a bandwidth of 500 MHz. The Agilent HP 54520A has the extra performance and features that you need to get an accurate view of the high frequency signals you encounter, whether you do analog or digital design, R&D or manufacturing test.
With 32 K memory per channel, 2 channels, sample rate up to 1 GSa/s, 1 ns peak detect, and sophisticated triggering, you can be confident that you won't miss critical signal activity. These feature-rich digitizing scopes also include standard FFT, floppy disk drive, and sequential single shot acquisition for better analysis and characterization of your signals. Choose between a color flat-panel display (54520C) or monochrome display (54520A).
SPECS: *** 500 MHz Bandwidth *** 2 channels *** Up to 1 GSa/s Sample Rate *** 1 ns Peak Detect *** 32 K of acquisition memory per channel *** Sequential single shot acquisition for capturing successive events *** Built-in, multi-format 3.5" disk drive.
For more information: http:// /vt/assets/pdfs/HP_54520A.PDF
