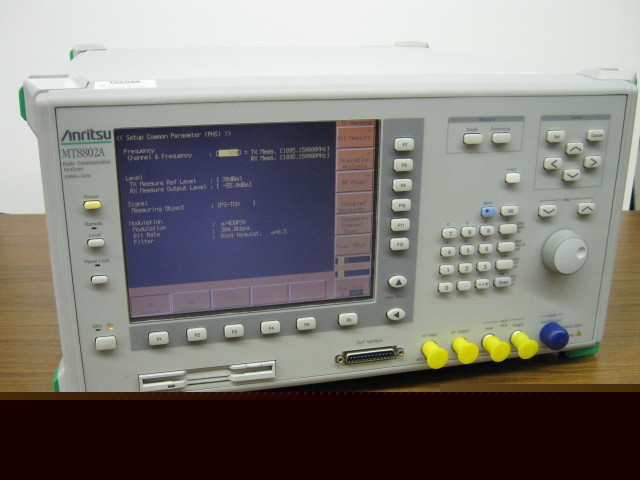

Anritsu MT8802A/07 radio comm & 3 ghz spectrum analyzer
Anritsu MT8802A/07 RADIO COMM & 3 GHz Spectrum Analyzer
Includes Option 07 - Spectrum Analyzer
The MT8802A was designed to support the test needs of the manufacturing, R&D and maintenance markets. All major radio communication systems in the world, including IS-95, GSM/DCS1800/PCS1900, IS-136A, AMPS/NAMPS, PDC, and PHS, can be evaluated using just one MT8802A Radio Communication Analyzer, covering the 300 kHz to 3 GHz frequency band in one hardware platform, and the dedicated measurement software options. This tester supports Service Options 1, 2 and 9 for IS-95 and J-Std-008 as well as call processing and sensitivity testing using the loopback method for GSM/DCS1800/PCS1900 and IS-136A.
The call processing function, transmission/reception measurement functions, analog measurement function, and thermocouple power meter are provided as standard features. And when the spectrum analyzer function is added as an option, the MT8802A becomes a general-purpose spectrum analyzer that covers the frequency range of 10MHz to 3GHz.
* Frequency range 300KHz to 3 GHz
* Main: +40 dBm (10 W); AUX: +20 dBm (100 mW)
* Frequency range: 10 MHz to 3 GHz
* Output Level: Main -13 to -133 dbm, AUX +7dbm to -133 dbm
* AF Oscillator: 20Hz to 20 Khz
* Power Meter: 0 to +40dbm Main, -40 to +20dbm AUX
* Frequency Counter: 10 Mhz to 3 GHz
* FM Deviation and De Modulation
* Audio Analyzer: 20Hz to 20 KHz, Distortion Measurements 100Hz to 5 KHz
* Spectrum Analyzer Option (07)
* Sideband Noise: 95 dBc/Hz
