Kong yih vertical precision drill press tapmatic s-600B

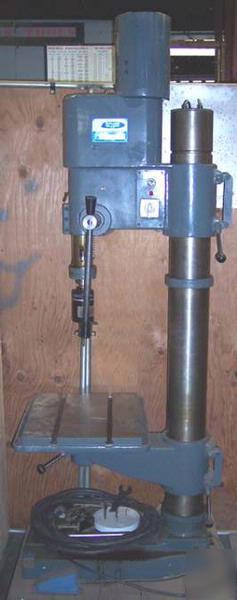

Kong Yih Vertical Precision Electric Drill Press Tapmatic S-600B
Information below was provided by the client.
Distance from center of drill spindle to column......................... 12
Max. distance from spindle nose to table................................... 32 1/2
Max. distance from spindle nose to baseplate........................... 47"
Diameter of ground column........................................................ 5 1/2"
Table size..................................................................................... 20" x 16"
Working surface of standard baseplate...................................... 16" x 16 1/2"
Quill movement........................................................................... 6 5/8"
Spindle bore, Morse taper........................................................... 4
Max. drilling capacity in steel...................................................... 1 1/2"
No. of spindle speeds................................................................. 8
Range of spindle speeds, rpm....................................................
Rate of power feed per rev. of spindle........................................ 0.004:0.007"
H.P. of pole change motor, 3-phase A.C., 60 cycles................... 1.5/2.2
Net weight (unpacked)................................................................ 330KGS
Packing size (LxWxH)........................................................ 32 1/2" x 26" x 85"
Kong Yih Vertical Precision Electric Drill Press Tapmatic S-600B
