Cordless gutta endodontic pen of obturation endo system

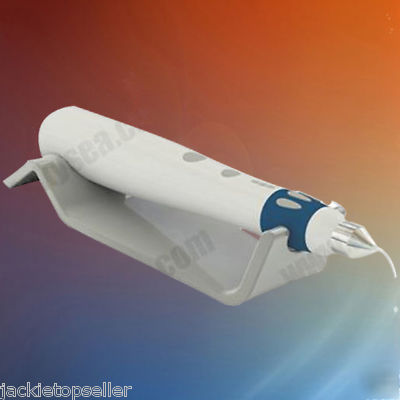

CORDLESS GUTTA ENDODONTIC PEN of Obturation Endo System
The Obturation pen is designed for vertical condensation or down packing with warmed gutta percha in the canal.Also,it can be used to cut off access gutta percha point or complete root canal filling by repeated use.
1.Select the appropriate tip and insert into tip holder of the pen.Adjust the angle in relation to the tooth being treated and tighten firmly using the customized multi-tool provided.Available tip sizes provided are F,FM,M, and ML.
2.Connect the pen to the control unit with a desingated electric cord.
3,Adjust the pen tip mode depends on the tip size selected and adjust the working temperature denpends on working condition.
4.The pen is operated by presing the spring switch.(Three spring switchs are on the head of pen). It is pressed,the LED will light up and a beeping sound will be heared.As it s commented in front,special care is needed to avoid any accidents by burning.The spring switch must be in touch-free position at any place.
5.After use,change the mode to the stand by or turn the on off switch off,if necessary,remove the pen tip with a multi-tool.Clean the tips regularly with the use of a towel with the cleaning solution provided.Do not open the pen hand piece in any case.
Mode Button (Pen Tip Selection Button)
Each mode lamp from the top down is on in Red and Green color alternately when pressing that mode button. Three lamps are displayed on the surface of pen from the top down!
Green color represents low temperature, Red color represents high temperature!
F indicates fine size of tip.FM is for Fine-Medium,M is for Medium,and ML is for Medium large size. Adjust the mode button to correspond with the pen tip size that will be used.
The first lamp from the top down lights up, tip size F is available. The second one lights up, tip size FM is available! The third one lights up, tip size M & ML are available!
3.Temperature range of pen 150-300
Notice this is ONLY CORDLESS GUTTA ENDODONTIC PEN from the Obturation Endo Syste
Packing list : CORDLESS GUTTA ENDODONTIC PEN 1pc
adaptor ( according to your country , 1pc
we will send correct type to you )
