Tektronix tca 1MEG 1M ohm adapter high impedance buffer

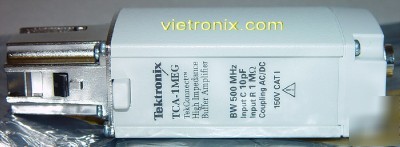

Tektronix TCA 1MEG 1M Ohm Adapter High Impedance Buffer
Unit Included: No document or accessories come with unit
The TCA-1MEG high-impedance buffer amplifier system extends the capabilities of Tektronix high-performance oscilloscopes, making them ideal for a variety of general-purpose measurements. The TCA-1MEG amplifier system provides a 1 M path that is easily removed and replaced with a wide array of TekConnect probes, amplifiers, and adapters.
This amplifier system delivers versatility to Tektronix high-performance oscilloscopes through the addition of input coupling (selectable), bandwidth limit (selectable), and a 1 M input that provides access to a wide array of measurement solutions. These solutions include general-purpose passive probes, high-voltage probes (passive single-ended and active differential), microvolt differential probes, and current probes.
With this tool, Tektronix high-performance oscilloscopes may now perform measurements such as primary and secondary power supply voltage levels, currents, and elevated voltages, and assess the power requirements of the device-under-test.For today's high-speed measurement solutions, having the 50 and 1 M terminations on the same input path compromises signal fidelity. By making the 1 M path replaceable, the TCA-1MEG high-impedance buffer amplifier system eliminates a permanent degradation of the high-speed signal path. This also allows users to easily and quickly configure each channel for the input characteristics required for their measurements. By exchanging the TCA-1MEG for a high-performance 50 path or other high-speed probing solution, maximum signal fidelity is maintained at the oscilloscope's input.
Bandwidth - DC to 500 MHz
Input Impedance - 1 M / 10 pF
Bandwidth Limiting - Full/100 MHz/20 MHz
Input Coupling - DC/AC/GND
Used with P6139A, 500 MHz, 10x Passive Probe
TekConnect Interface Delivers Superior Signal Fidelity, Unparalleled Versatility, and Ease-of-use
