Vs eye digital visual acuity panel , digital eye chart

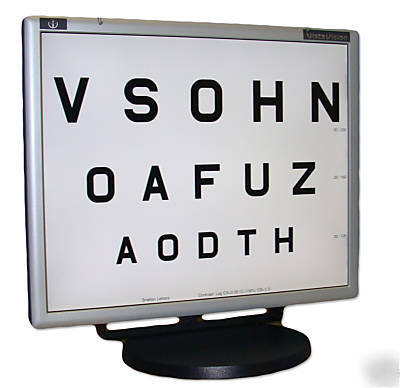

The VS EYE Digital Visual Acuity Panel , Digital Eye Chart
a unique and simple Digital Eye Chart to meet all professional needs in vision testing
High Technology, All in one, 19 , Visual Acuity Tester
* LCD 19 Screen, calibrated and certified luminance.
* Wall mounting and portable,
* Lifelong LCD calibrated constant luminance,
* Completely silent (fan-less),
* Fast built on and instant off (Embedded Linux Operating System),
* All letters chart with contrast sensitivity function,
* Polarization 45 / 135 degree (optional),
* Complete, precise and versatile software for a fat acuity evaluation, programmable patient s acuity examination,
* Free internet upgrade software via USB key,
* Long-life up to date technology at a competitive price.
From 0.3/10 to 16/10, 13 contrast LogSC levels, random, single letter, single line, multi line, red and green.
144 calibrated stimuli, 3 random inclinations, 8 contrast sensitivity levels, 6 spacial frequency levels (from 0.75 to 18 cycle/degree), graph report.
Ishihara Tables (25 brightness calibrated tables)

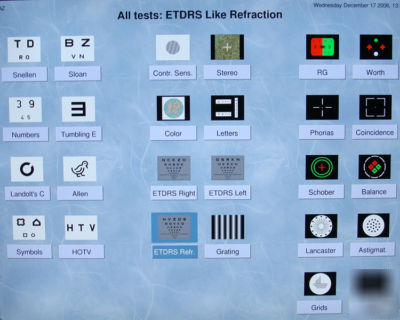

All Tests: Contrast Sensitivity Test with innovative Fast 2-1 psycho-physic procedure, standard ETDRS tables (Refractions, Right, Left), Snellen, Sloan, Numbers, Allen pre-school, Tumbling E, Landolt s ring, HOTV, Ishihara tables, Phoria (Verical, Horizontal), Coincidence test (Vertical, Horizontal), Worth s rhombi, Lancaster s Tables, Dicromatic balance, Amsler s grid, Children s images, Astigmatism point, Grating (Sinusoidal, Square bars), Stereo tests, Schober test with horizontal and vertical deviation, Near vision tests, Hebrew letters, China Ideograms
All Settings: Multi-user settings (up to 3 users), background luminance level setting between normal brightness and high brightness, 12 Visual Acuity Scale (Arithmetical and Geometrical progression), Patient-Screen distance from 0.5 m to 8 m, Mirror option, 4 languages software, Red and Green calibration, Personal group tests setting, 4 programmable patient s examination.
Tools: Remote infrared control, Stereo sound, Children s animation, Wall mounting (standard VESA) Or Rotating Stand. For table use, Polarized screen with glasses, Red and Green glasses, Patients report, USB for patients report storage, USB key for software upgrade, Trolley for portable use.
Most of the famous Chart Panels sold in the world either by big companies are based on a general purpose personal computer: standard operating system, memory data storage on mechanical hard disk, and high power dissipation. All this will give you a reliability problem.
The VS Eye Chart is different from standard PC based chart panel
The VS Eye Chart is based on high quality, new technology and maximum reliability systems:
* Linux Embedded (to assure software stability)
* Data storage flash memory (To assure no data corruption or data loss)
* Ad-hoc developed electronic board with only 4W power consumption. (for electronic long-life and silent fanless system)
The Modern Way for Vision Testing
The VS Eye Chart is a long life reliability tool.
* 40,000 hours LCD life guarantee
The VS Eye Chart is a precise tool
* 10 years of software development with the support of ophthalmologist, optometrist and orthoptist teams.
* LCD luminance and contrast curve are calibrated by a certified body for professional contrast sensitivity measurement.

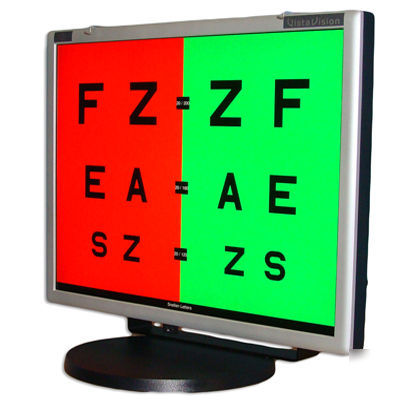

* Red and Green calibration menu
The VS Eye Chart is a versatile tool
Rotating stand for table use
Multi-user: up to 3 different users
4 patient s programmable evaluations
The VS Eye Chart is cost sensitive
* Cheaper than competitors same level products
LCD 19 contrast calibrated system for a precise sensitivity measurement
Wide Range of Examination: 0.03-1.6
Adjustable Distance: up to 8 m or 26 ft.
* Two preselected background luminance levels: dark room or normal room
* Visual units: 12 visual acuity scale(decimal, log, LogMar, 20ft, 10ft, 6m, 3m, )
* Just 3 remote control key to run all test
* Programmable display sequences
* Contrast sensitivity Sequential procedure and Fast 2.1 psycho-physic procedure
* Single letter , Horizontal line, Decending lines
* Unlimited number of charts, full optotype randomization
* Video player with child s entertainment and stereo audio
* Dimension (WxHxD): 41x34x6 (cm)
* Power Supply: 110-220 VAC, 50-60Hz
* IR remote battery type: AAA LR6
* Standard wall mounting Vesa 100x100 or table version
* Classification: Medical Device Class 1
* Compliance with: international standard UNI EN ISO 15004, ISO 10938, ISO8596
