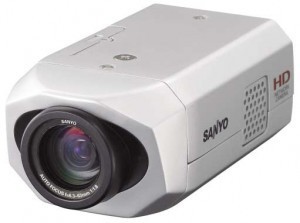

Sanyo vcc-HD4000 ip camera hdmi 1080P h.264 network hd
1/2.5" Color Progressive Scan CMOS
Focal Length: 6.3-63mm (F1.8-2.5)
Zoom: 10x Optical, 16x digital
Color: 2 Lux at F1.8, gain High
B/W: 0.1 Lux at F1.8, gain High
Human Face Detection: 32 faces
Electronic Shutter: 1/30-1/10,000 sec
White Balance: ATW/AWC/MWB/Outdoor/Indoor/Fluorescent Adjustable R and B signals in MWB mode
BLC: Multi-spot metering/Center-zone metering/Face/OFF, Mask settings possible
Day/Night: Auto/Color/Black and White
Auto Focus: AUTO/MANUAL/ONE-PUSH; Selectable focus area
Gain: Normal/Middle/High/Off, Adjustable gain control in Off mode
Gamma: 0.45/1, other settings available
Electronic Sensitivity Boost: AUTO/OFF, Max. 32x
ON/OFF, Selectable area detection, Selectable sensitivity level, Human face detection, Motion alarm zoom function: Selectable magnified ratio and duration time
2 Alarm inputs, 1 alarm output
External Lens Control: Zoom/Focus/Common
HD: 1280 x 720p, 960 x 540p, 640 x 360p
2M: 1600 x 1200, 1280 x 960, 1024 x 768, 800 x 600, 640 x 480, 320 x 240
16:9 HD: 1920 x 1080, HD 1280 x 720, 1024 x 576, 640 x 360
30 IPS in all H.264 resolutions
TCP/IP, UDP, HTTP, HTTPS, SMTP, NTP, DHCP, FTP, UPnP, DDNS
1 with IE browser, up to 128 with bundled VA-SW3050Lite software
RJ-45 port (10BASE-T/100BASE-TX)
OS: Windows XP Pro SP2, Vista, Server 2003 SP2
Network Interface: 100Base-TX
Graphics Card: AT Radeon HD2600 series or higher, nVidia GeForce 8600 series or higher, Quadro FX550 series or higher
3.7 x 2.6 x 6.3" (95 x 67 x 159mm)
