Tektronix sd-46 20 ghz head CSA803C 11801C electrical

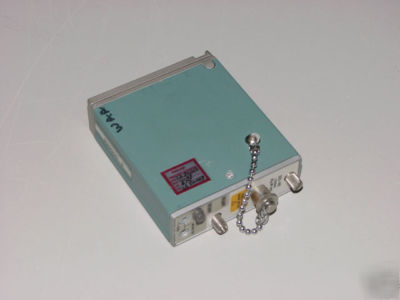

Tektronix SD-46 20 GHz Head CSA803C 11801C Electrical
The SD46 is an optical-to-electrical (O/E) converter for use with the Tektronix CSA803 and 11800 Series sampling oscilloscopes equipped with an SD2x or SD3x Electrical Sampling Head. The SD46 converter can be plugged directly into an 11800 sampling slot or CSA803 power slot. The optical signal input is a standard FC/PC fiber optic connector. Other connector types can be accommodated by using optional hybrid fiber optic jumper cables.
* High Speed Optical Communication Testing (SONET/SDH)
* Optical Source and Device Characterization
* Analyze Relaxation Oscillation
* Wavelength: 1100 to 1650 nm
* Linear up to 25nW peak input with a calibrated deflection factor from 50 microW/div. to 5mW/div at 1300 nW
It works with the CSA803C and 11801C Sampling Oscilloscopes.
