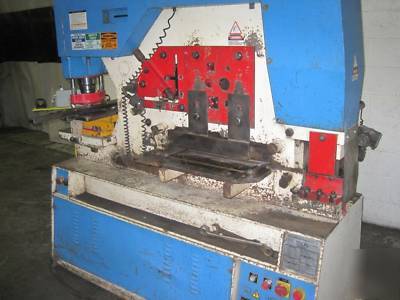

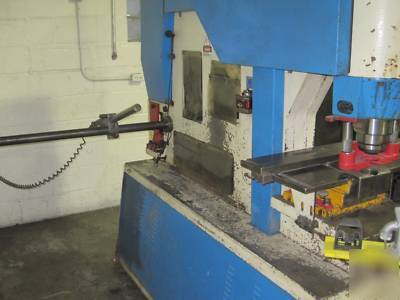

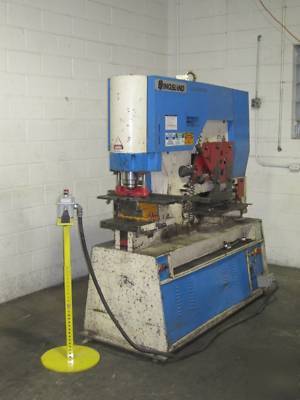

New kingsland ironworker 125 ton used & piranha geka

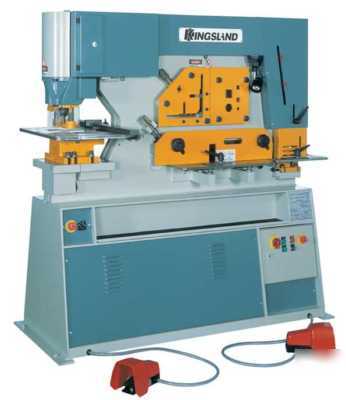

fully integrated type hydraulic ironworker
o 2-1/8 round in 5/8 material
o 6 x 6 x 3/4" material @ 90 degrees
o 3 x 3 x 3/8 material @ 45 degrees
o 2-3/8 x 4 rectangle in 1/2" material
Optional: Offset die holder for punch station, Footswitch control
Worktable for shear station 36 work height
Worktable for notching station 36 work height
Hold-down / clamp for angle shear 47 work height
Work table for punch station 41-1/2 work height
230 / 460 volt, 3 phase electrics
PRICE, AS PICTURED, CYCLED & TESTED, ........$19,910.00

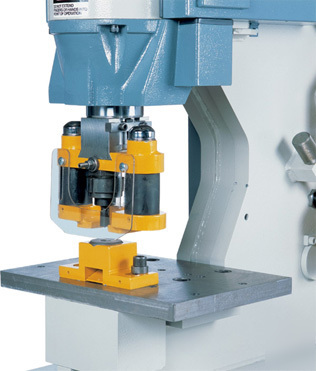

10 Sets Round Punch & Die up to 1.1/2" diameter
Easy change Punch Holder, Ring and Adapters.
Swing away Punch Stripper with simple Thumbscrew adjustment.
or the punching of flats, angle and flanges of Channel and I Beam.
Blades for cropping round and square.

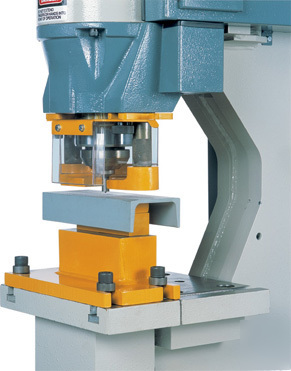

Rectangular Notch Punch and Dies.
Punch Support table complete with Back gauge and Side Stops.
Notch Support Table complete with repetition Stops.
Shear Support Table and Squaring Guide.

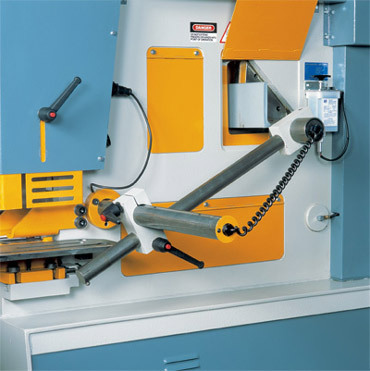

Adjustable Hold Downs for shear, Angle and Section Stations.
Shielded Foot Pedal Control to both Punch and Shear ends.
Power Inching and Adjustable Stroke.
Automatic Overload Relief on Hydraulic System.
Wired 220/440 VAC 3phase 60Hz.
Starter, Isolator and Inch switch controls.
Low voltage electrical control circuit.
Comprehensive Safety Guards to all Work Stations.
Maintenance/Instruction Manual including Parts List.
Exceptionally Spring Liquidation; Net price: $ 18,990.00!
Returns Subject To Management Approval
