Mpi 26.5-40 ghz lcd digital prog. attenuator WR28 gpib

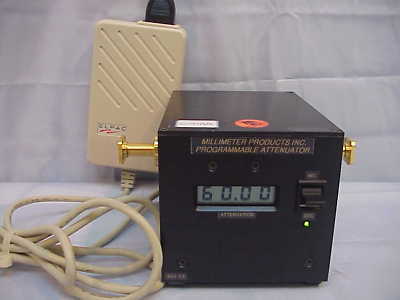

This sale is for a Millimeter Products/(Mi-Wave) 511A/599 WR28 26.5 to 40 GHz
GPIB Digital Programmable Waveguide Attenuator
The attenuator has been TESTED by our Lab Technician and works GREAT.
Attenuation control is either manually via a front panel or remote controlled using a standard
IEEE-488 interface. The attenuators small compact size incorporates both the electronic
controller and microwave components. The unit operates from a single +24 volt DC source
or with an AC adapter (included). Attenuation range is from 0 to 60 dB in 0.1 dB steps with
0.05 dB steps from 0 to 20 dB. A digital readout is provided on the front panel to display
attenuation settings. The attenuators are highly reliable and designed to be used in ATE
and remote power control applications.
Configured with UG599/U Flange
for additional information and specifications.
Includes 24 V Power supply & Power cord
THIS ITEM IS NOT FOR SALE OR EXPORT OUTSIDE THE UNITED STATES!
