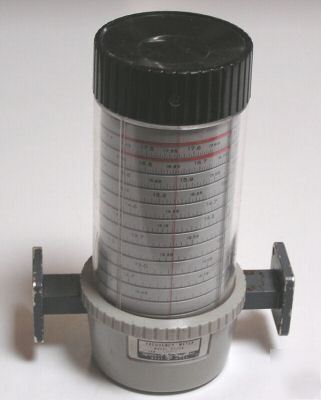

Hp X532B direct reading frequency meter
This direct-reading frequency meter measures frequencies from 8.20 to 12.4 GHz in WR90 waveguide, with 0.080% accuracy. The long scale and numerous calibration marks, in 5 MHz increments, provide high resolution which is particularly useful when measuring frequency differences or small frequency changes. Frequency is read directly in GHz so neither interpolation nor charts are required.
The instrument contains a special transmission section with a high-Q resonant cavity which is tuned by a choke plunger. A 1 dB or greater dip in output indicates resonance; virtually full power is transmitted off resonance. Overall accuracy includes allowance for 0 to 100 percent relative humidity and temperature variation from 13 to 33 C.
This unit has some slight cracks on the rear side of the plastic lens - does not affect operation.
