6" pines hydraulic tube bender, mdl. 4-M14683

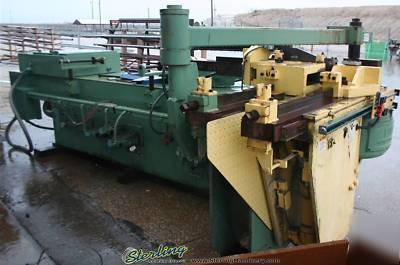

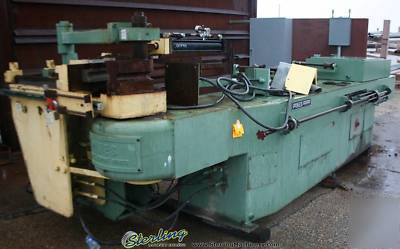

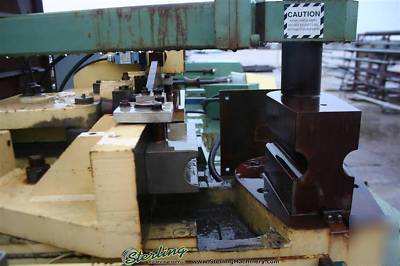

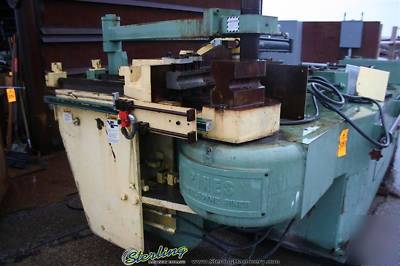

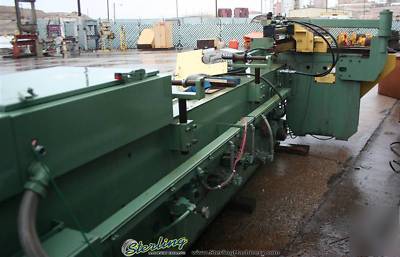

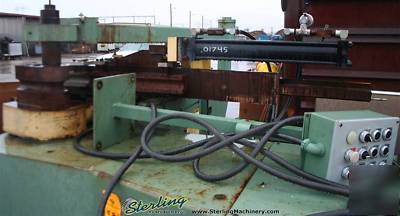

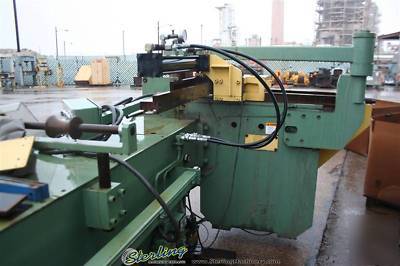

ONE Preowned PINES Hydraulic Tube Bender
MDL. 4- M14683, S/N 11430-91167, MFG 1991
CAPACITY .. .. 6"
ROUND TUBING (MILD STEEL) .. 6" X 0.165"
(STAINLESS) 4-1/2" X 0.250"
STEEL PIPE (SCHEDULE 80) .. 4-1/2 X 0.337"
SQUARE TUBING (MILD STEEL) 4" X 0.250"
ROUND BAR (MILD STEEL) . 3-1/2"
SQUARE BAR (MILD STEEL) ... 3-1/8"
MAX. RADIUS .. 25"
MAX. BEND ANGLE 180 DEGREES
MAX. TUBE LENGTH OVER MANDREL 13' 6"
BENDING ARM SPEED . 2.3 RPM
OIL RESERVOIR CAPACITY 122 GALLONS
DIMENSIONS (L X W X H) 18' X 87" X 70"
WEIGHT (LESS OIL) .. 12,600 LBS.
MOTOR . 20 HP
8 POSITION MANUAL DEGREE OF BEND
PRICE: ON SITE, (SOUTH EL MONTE, CA) . $47,500.00
