Smt TL071 & smt LM386 ics kit w/ smt pcb (#2924)
SMT TL071 & SMT LM386 ICs Kit w/ SMT PCB (#2924)
This is the TL071 & LM386 SMT ICs Design Kit. It includes the very popular SMT version of the TL071 JFET Op Amp and the SMT version of the LM386 Audio Amplifier. These are two of the world's most popular ICs and have been used in many types of circuits through the years. With this kit, you also get a few pieces each of the MMBT4401 (NPN) & MMBT4403 (PNP) SMT Tansistors and some SMT Variable Voltage Regulators, LM317M, in the SMT package.
This kit also includes a tremendous amount of different SMT components that you would use to develop numerous circuits. Included are different values of SMT Resistors, SMT Power Resistors, SMT Resistor Arrays, SMT Aluminum, Ceramic & Tantalum Capacitors, SMT Inductors, SMT Signal & Zener Diodes, SMT Trimpots, SMT LEDs (RED, GREEN, YELLOW, BLUE, & WHITE), SMT Speaker, SMT Electret Microphone, and some Pushbutton Switches. It also includes some electronic hardware that are used in most projects for I/O.

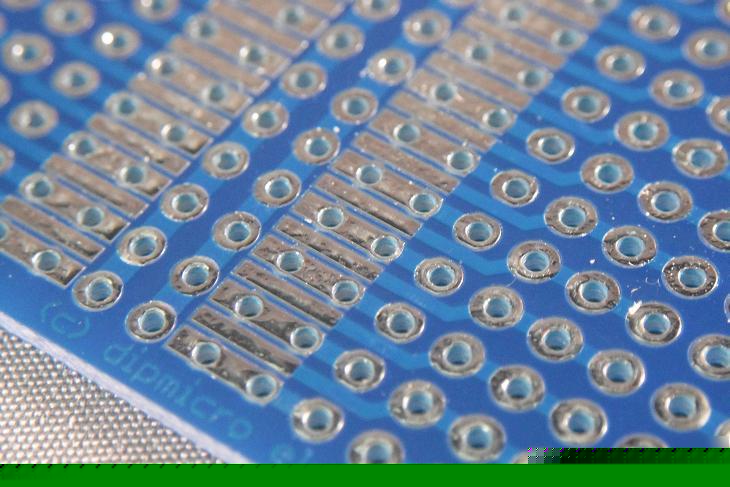

This SMT Kit also includes an SMT Prototyping PCB to be used for building your circuits on. It is Single-Sided for ease of use, FR-4 epoxy-glass, is 2.7" x 1.9", and has 4 corner holes for mounting. The columns and rows are clearly marked on the bottom side. There is a Power and Ground bus running down the center which makes it easier to connect power to and reduces system noise. It will accept SMT and Thru-Hole components for optimum designs. This SMT PCB will also fit into the Tyco SnapTrack 2TK series rail.
The data sheets for these SMT ICs and SMT Transistors, along with hundreds of others, are located at DATASHEETS. If you are interested in making your own hand-made SMT PCBs in less than an hour, then go to Making a Homemade SMT PCB.
With these parts, you can make numerous circuits such as Battery Monitors, relay drivers, signal conditioners, function generators and much more. Surface Mount Technology (SMT) components have no leads, this is a chance to get some SMT parts and learn to use them. You get the following:
TL071, Single JFET Op Amp, SOIC-8
LM386, Audio Amplifier, SOIC-8
LM317M, Adjustable Voltage Regulator, SMT D-PAK
SMT Prototyping PCB, Single-Sided, FR-4, 2.7" x 1.9"
MMBT4401, NPN, General Purpose Amplifier, SOT-23
MMBT4403, PNP, General Purpose, Amplifier, SOT-23
BAS70, Single, Fast Switching, SOT-23
BAS221, Single, Fast Switching, SOD-110
BAW56, Dual, Common Anode, Fast Switching, SOT-23
BAT68-07, Dual, UHF/VHF Mixer, SOT-143
MMBD4148, Single, Fast Switching, SOT-23
BYD37D, Fast Recovery Avalanche Rectifier, SOD-87
GL41D, 1.0 Amp, 200V, Rectifier, DO-213AB
DL4004, 1.0 Amp, 400V, Rectifier, MELF
MMBZ52229BLT, 4.3v, 500mW, SOT-23
BZX84-C10LT, 10V, 500mW, SOT-23
CAT16-30R0F4, Bourns, 30.0 per Resistor, 4 Resistors, 1%
CAT16-620J4, Bourns, 62 per Resistor, 4 Resistors, 5%,
CAT16-242J4, Bourns, 2.4K per Resistor, 4 Resistors, 5%
CAT16-393J4, Bourns, 39K per Resistor, 4 Resistors, 5%
1.0 Ohms, 5%, Thick Film, 2010
130 Ohms, 5%, Thick Film, 2532
300 Ohms, 5%, Thick Film, 1210
360 Ohms, 5%, Thick Film, 2512
390 Ohms, 5%, Thick Film, 1210
750 Ohms, 5%, Thick Film, 1210
2.0K Ohms, 5%, Thick Film, 2512
20K Ohms, 5%, Thick Film, 1210
2.2uF, 50v, 20 %, Aluminum Electrolytic
4.7uF, 50v, 20 %, Aluminum Electrolytic
10uF, 50v, 20 %, Aluminum Electrolytic
NLQ0805TL-033J, TDK, 33nH, 5%, 0805
LL2012-FHR27J, Inductors Inc, 270nH, 5%, 0805
CTLL2012-FHR33J, Central Tech, 330nH, 5%, 0805
1008HS-561TJBC, CoilCraft, 560nH, 5%, 1008
BLM21B121SBPT1M00-03, MuRata, 500mA, 0805
RED, Clear Lens, 140 Top view
GREEN, Clear Lens, 140 Top view
YELLOW, Clear Lens, 140 Top view
BLUE, Clear Lens, 140 Top view
WHITE, Clear Lens, 140 Top view
Male, 8-pin .100" Centers, .025" Square Post, Breakable
Female, 8-pin .100" Centers, .025" Square Post, Breakable
Electret, Panasonic WM-62ECT301
RCA Phono Jack, Female, PCB Mount
