23.5" swg 2.95HP spdl willis alzmetall AB34/sv drill pr
23.5" Swg 2.95HP Spdl Willis Alzmetall AB34/SV DRILL PR
23.5" Swing 2.95HP Spindle Willis Alzmetall AB34/SV DRILL PRESS, Geared Head w/PDF

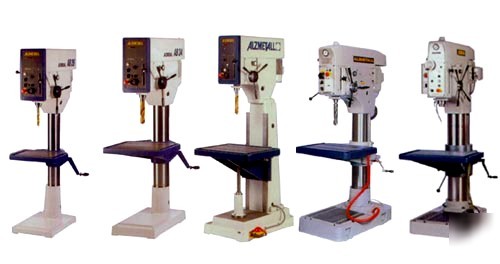

NEW WILLIS-ALZMETALL (GERMAN) DRILL PRESS
PAINT COLORS: Grey RAL 7035 or Blue RAL 5003
Mains switch lockable, overload protection switch,
emergency-OFF mushroom switch (self-locking),
protection class IP 54, electromagnetic feed clutch, digital readout
for spindle speed (not with AB 65), contactor control for clockwise
spindle rotation (with AB 40 and AB 65), electrical spindle speed
setting (with AB 40), built-in work light (with AB 65 only), control
and light transformer (with AB40).
Drilling performance in structural steel: 1-5/16"
Drilling performance in cast iron: 1-9/16"
Tapping performance in structural steel: 15/16"
Tapping performance in cast iron: 1-3/16"
Column to spindle distance: 11-13/16"
Machine table clamping surface: 24-1/4" x 17"
T-Slots (number x width x distance): 2 x 9/16" x 8-13/16"
Automatic feeds: .004", .008", .012", .016" IPR
Motor: 750/1500 RPM 1.85 / 2.95 HP
Spindle speed ranges: 100-1800 RPM
Motor: 500/1500 RPM .8 / 2.4 HP
Spindle speed ranges: 70-1800 RPM
AZ Automatic Tapping w/Foot Operated Reversing Switch
Flood Coolant with a Separate Detached Coolant Tank
