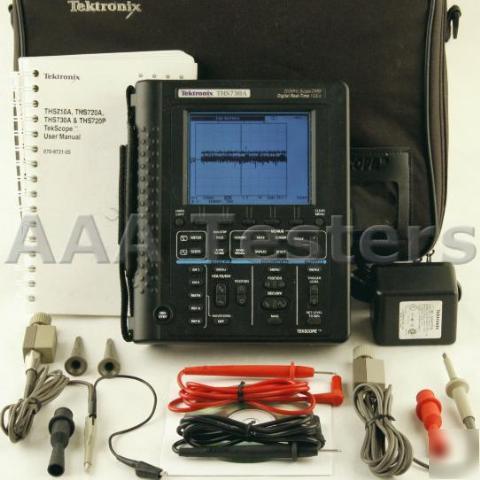

Tektronix tekscope THS730A 200MHZ handheld oscilloscope
* Tektronix TekScope THS730A
* Tektronix P6121 Voltage Probe
* Tektronix P6105A Voltage Probe
* Fluke TL75 Hard Point Test Leads (1 Red - 1 Black)
* Fluke AC20 Alligator Clips (1 Red - 1 Black)
Tektronix TekScope THS730A HandHeld 200MHz Dual-Channel Oscilloscope
The Tektronix THS730A oscilloscope is a graph-displaying device it draws a graph of an electrical signal. In most applications, the graph shows how signals change over time: the vertical (Y) axis represents voltage and the horizontal (X) axis represents time. The intensity or brightness of the display is sometimes called the Z axis.
The Tektronix THS730A oscilloscope's simple graph can tell you many things about a signal, such as: the time and voltage values of a signal, the frequency of an oscillating signal, the moving parts of a circuit represented by the signal, the frequency with which a particular portion of the signal is occurring relative to, other portions, whether or not a malfunctioning component is distorting the signal, how much of a signal is direct current (DC) or alternating current (AC) and how much of the signal is noise and whether the noise is changing with time.
* 1 GS/s and 500 MS/s Sampling Rates per Channel
* Sample Rate (each channel): 1 GS/s
* Time/Division Range: 2 ns to 50 s/div
