Racal dana 9916 portable uhf frequency counter 520 mhz

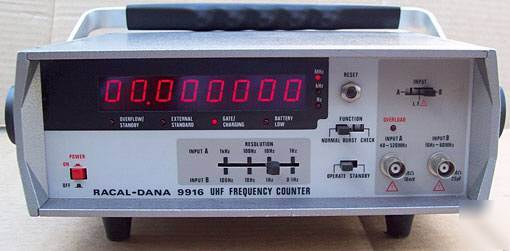

Racal Dana 9916 Portable UHF Frequency Counter 520 MHz
UHF Frequency Counter 520 MHz, Portable Communication Counter
The 9916 is an 8 digit, 520 MHz frequency counter designed for servicing and calibrating mobile communications equipment and AM/FM broadcast equipment.
Features include auto gain control AGC on both input channels, frequency burst mode for measurement of short duration signals and data output. Full RFI filtering and shielding allow the 9916 to be used in high RFI environments.
* Frequency Range ch A - 40 MHz to 520 MHz / ch B - 10 Hz to 60 MHz
* Input impedance: ch A - 50 ohms, ch B - 1 Mohm in parallel with 25 pF
* Sensitivity Sinewave: 10 mV rms Max
* Operating Input: ch A - 5 V rms, ch B - 10 V AC p-p
* Max Safe Input: ch A - 35 V rms, 25 W. ch B - 250 V rms up to 10 kHz, 50 V rms up to 100 kHz, 10 V rms above 100 kHz, 400 V DC
Manual web address: pdfdatabase.com/free-racal-dana-9916-maual.html
Mint Condition / used / clean / working
