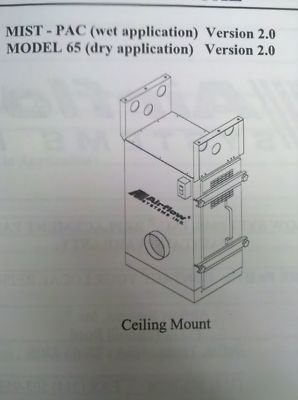

Airflow systems mist-pac model 65 mist collector
The Mist-PAC collector is designed for the direct source capture of pollutants. it collects dust, smoke, oil mist, oil smoke, and other atmospheric pollutants in industrial plants, shops, schools, and factories with high filtration efficiency and three stage filtration.
It is a complete package including the air filter unit that can be installed easily and used as a source capture air filter to clean the ambient pollutants,smoke and haze.
maintenance of the filter does not require any tools to access the filters. the first 2 stages of the filters can be accessed for regular cleaning in a suitable solvent.
* High capacity source capture: Simplifies OSHA compliance.
* Standard 115V operation: Low-cost energy requirements.
* Non-electrostatic operation: High reliability, low maintenance.
* Ultra-Seal filter mounting: Eliminates contaminant bypass of filters.
* Vertical design with small footprint: Eases installation, aids draining.
* Built-in silencer: For quiet operation.
* Direct-drive blower: Greater reliabilty, no belts or pulleys to replace.
* Pressure Gauge Kit: Indicates when filters require cleaning.
* Chevron Mist Eliminator: Effectively removes moisture; improves filtration effectiveness and extends filter life.
* DOP/Heavy Smoke Filter: Provides 95% efficiency.
* Hanging Kit: For ceiling mount.
* Positioner Arm: Self-supported positioner arm in 5-ft. and 8-ft. lengths.
* .75 HP High Pressure Motor: Raises air flow to 600 CFM.
* Construction: 18 ga. steel, cabinet coated with oil resistant paint
* Blower Pkgs (HP): .50, .75
* Noise Level (dBA): .50 HP - 65; .75 HP - 68
* Electrical: .50 HP - 115V, std, 7.4 amps.; .50 HP - 220/1/50, 3.8 amps.; .75 HP - 115/1/60, 10 amps.
