Mitsubishi dpx-460 + harlequin rip - 16" x 21" ctp

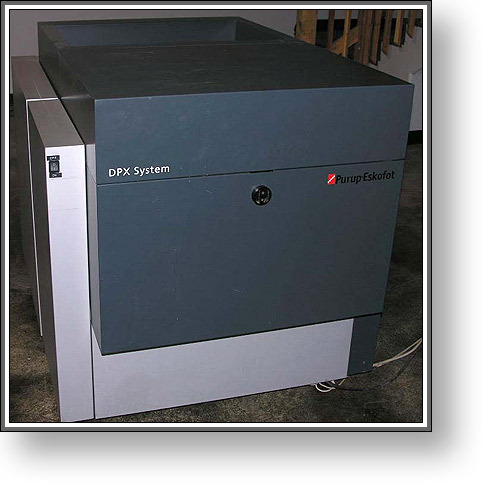

* Eskofot (Mitsubishi) DPX-460:
* Manufacturer: Purup-Eskofot (Mitsubishi)
* 16.5" x 21.6" Maximum Plate Size
* "The DPX Platesetting System is an internal drum device that images 175-line, perfectly registered, press ready Silver DigiPlate paper and polyester plates directly from your desktop. It's ideal for black & white to high-quality 4-color printing jobs, producing plates up to 16.1" x 21.6" with resolutions from 900 to 3600 dpi. The DPX Platesetter operates in full daylight and delivers processed, dried, pre-punched press-ready plates quickly and efficiently so you can compete for short-run, process color jobs."
* List Price: $89,000.00 USD
* Condition: This unit is in good working condition. It has been in use since we purchased it. We are upgrading our system and no longer have any need for this one. It will make the new owner very happy!
* 4 Bottles Of AC Chemistry
* 4 Bottles Of ST Chemistry
* All Cables Necessary For Operation
* Manufacturer: Harlequin
* Purup-Eskofot (Mitsubishi) has a long and successful tradition in high performance polyester platesetters. These systems are popular due to a number of clear advantages: they are fully daylight operated, and the entire operation - imaging, processing, punching, drying and cutting to size for press ready plates - takes place in one machine.
* The DPX System is a Computer-to-Plate platesetter for high quality process color polyester plates.
* Fully automatic platemaking without manual labor
* Press-ready plates cut to size, punched, exposed, developed and dried
* No waste of time or material when changing plate materials
* Substantial savings in platemaking costs
* Increased productivity in pre-press operations
* Perfect registration reduces make-ready time on press
* Internal drum exposure
* Built-in processor with active replenishment
* Dual roll plate loading with two high capacity cassettes
* Variable resolutions from 900 dpi to 2540 dpi for a wide range of applications
* Spot size automatically adjusted to the selected resolution
* Up to 17 press ready plates per hour @ 2540 dpi
* Plate sizes up to 16.5" x 21.6")
* Visible Red Laser Diode (670nm)
* Resolutions: 900 - 2540 dpi
* Spot Size: 8-26 microns
* Minimum: 10" x 10"
* Maximum: 16.5" x 21.6"
* Maximum: 16.3" x 21.4"
* 25 m / 0.00098 over 4 plates
* Maximum Width: 16"
* Maximum Length: 200 feet / roll
* Maximum: 16" Width
* Minimum: 4 Mil / 0.1 mm
* Maximum: 8 Mil / 0.2 mm
* Production Speed (at max. image area):
* 900 dpi: 29 plates per hour
* 1800 dpi: 24 plates per hour
* 2540 dpi: 17 plates per hour
* Plate Dryer (Computer Controlled)
* Absolute: 0.0197" / 0.5 mm
* Relative: 0.00098 / 25 microns
* Media Lead Edge to Image: 0.016 / 0.4 mm over 4 plates
* Media side edge to image: 0.008 / 0.2 mm over 4 plates
* Width: 40.1" (1020 mm)
* Height: 42" (1066 mm)
* Depth: 53.9" (1370 mm)
* Weight: 902 lbs. (410 kg)
* Electrical Requirements:
