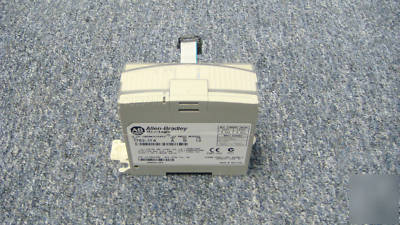

Micrologix 1200 thermocouple expansion module 1762-IT4
The 1762-IT4 expansion module offers 4 Thermocouple inputs for the MicroLogix 1200 PLCs. This item is used, but is in excellent working condition. Does not come in its original box. The 1762 MicroLogix expansion I/O modules are compatible with MicroLogix 1100, MicroLogix 1200, and MicroLogix 1400 controllers. If your application requires more I/O than the built-in I/O provided by the controller, add expansion I/O modules. Install the expansion I/O modules to the right of the controller, either on a panel with two mounting screws or on a DIN rail. You can use digital and analog I/O modules in many combinations, up to the maximum supported by the controller. The current loading capacity of the controller s built-in power supply may limit the actual number of I/O modules that can be connected to the controller. Features Integrated high-performance I/O bus Software keying to prevent incorrect positioning within the system Finger-safe terminal blocks for I/O wiring Label to record I/O terminal designations Network support includes EtherNet/IP, DeviceNet, and DH-485 (local only) Digital, analog, and specialty I/O modules available 1762-IT4 4 input channels plus a CJC sensor Thermocouple Types: J, K, T, E, R, S, B, N, C Millivolt Input Ranges: 50 mV and 100 mV 40 mA @ 5V DC 50 mA @ 24V DC 1.3 C ( 2.34 F) 15 bits plus sign 7 303 ms per enabled channel +CJC update time For more info
