> Leader 5860C waveform monitor tested 7 day inspection

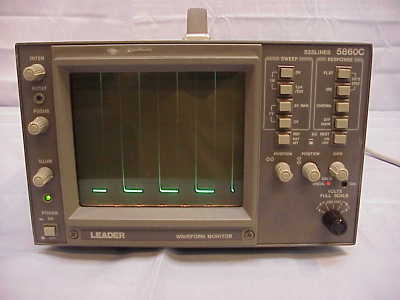

Leader 5860C waveform monitor tested 7 day inspection
This item has been TESTED by our Lab Technician and it works well.
Please view the lab photos below for additional information.
The Leader 5860C Waveform Monitor offers extended operating options such as lH and lV sweeps
for closer waveform inspection and a differential-step filter to facilitate luminance linearity checks using
staircase signals. A DIF GAIN filter also sets up differential gain measurements. The 5860C syncs to the
selected A or B feed or accepts black burst or composite sync as an external reference. An output jack
drives a picture monitor with the selected A or B video feed.
FLAT IRE, CHROMA and DIFFERENTIATED STEP Filters
(The Latter for Y Linearity Checks)
