Two keithley 7001 switch systems + four 7037D cards
These are two used Keithley 7001 Switch Systems with four 7037D Plugin cards.

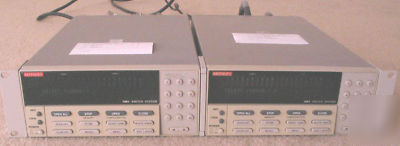

The 7001 Switch System can be used with various plugin cards. See the Keithley website for a list of cards compatible with this mainframe. You can also download user and service manuals for free. The mainframe has a two card capacity. The unit can be controlled from the front panel or by the IEEE-488 connector on the back of the unit. Both units are assembled with a rack mount kit and will fit a standard 19" equipment rack. The front panel keys and display are in execellent condition. There are some scratches on the sides of the unit. The units are also missing feet. I did some limited testing on these units:
Overall size of the mainframe is 19" wide x 3-1/2" high x 15" deep.

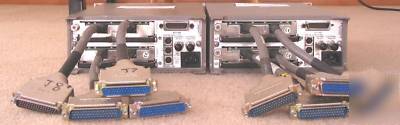

Both mainframes are fully populated with two 7037-D plug-in cards (for a total of 120 relays). Each 7037-D Single-Pole Relay Digital I/O card consists of:
Also includes two AC power cord.
