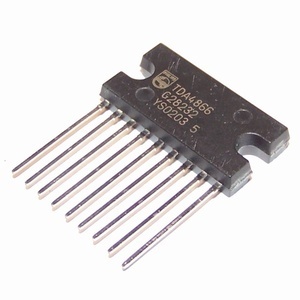

TDA4866 bridge current driven vert. deflection booster
Full Bridge Current Driven Vertical Deflection Booster
Fully integrated, few external components
No additional components in combination with the deflection controller TDA485x, TDA4841PS
Pre-amplifier with differential high CMRR current mode inputs
High linear sawtooth signal amplification
High efficient DC-coupled vertical output bridge circuit
High deflection frequency up to 160 Hz
Power supply and flyback supply voltage independent adjustable to optimize power consumption and flyback time
Excellent transition behaviour during flyback
Guard circuit for screen protection.
