Gould bass penetrant system - ndt - magnaflux

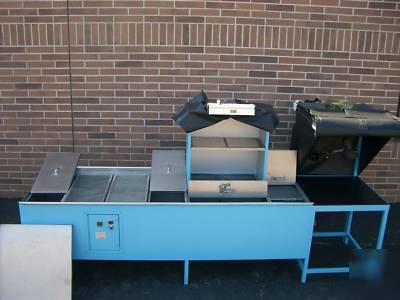

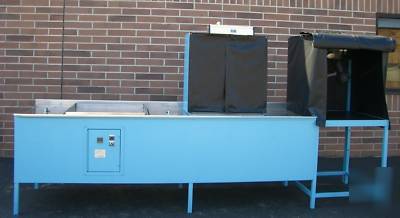

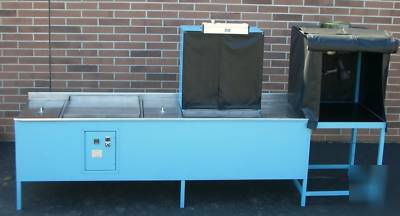

Water Washable Fluorescent Penetrant Inspection System
Penetrant Line is in mint condition. Quality constructed of heavy gage stainless steel tanks and tube framing.
- 148 x 36 x 78 (L x W x H)
Station No. 1: Penetrant Dip Station
- Dimensions: 33 x 16 x 16 (L x W x Deep)
- Tank cover, center drain with valve.
- Dimensions: 33 x 16 (L x W)
- Angled collection pan drains to Station No. 1
- Angled collection pan drains to Station No 4
Station No. 4: Penetrant Dip Station or Emulsifier Dip Station
- Tank cover, center drain with valve
Other: Dwell / Rest Tray / Cover
- Dimensions: 30 x 30 x 2 (L x W x Wall Height)
- Multi-use depending on user system configuration

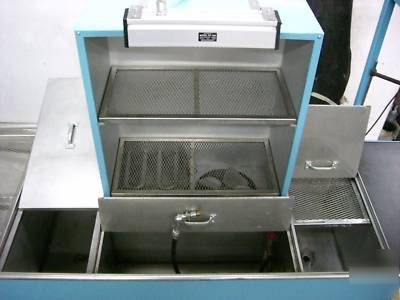

- Dimensions: 17 x 33 x 35 (Deep x W x High)
- 2 tier interior racks (removable)

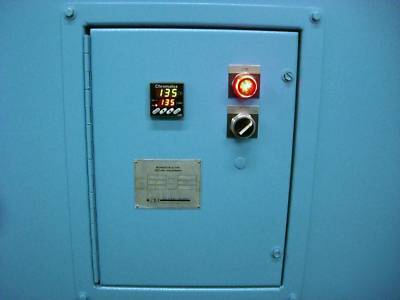

- Digital temperature controller
- Dimensions: 16 x 33 x 18 (L x W x Deep)
- Tri-con spray gun with conical spray brass tip (ASTM E1417)
- Overhead wash light (365nm Black Light)
Station No. 7: Developer Station
Station No. 8: Inspection Station
- Dimensions: 33 x 33 x 35 (L x W x High)
- Exhaust fan & white light assembly
- Inspection black light with swing arm mounting
