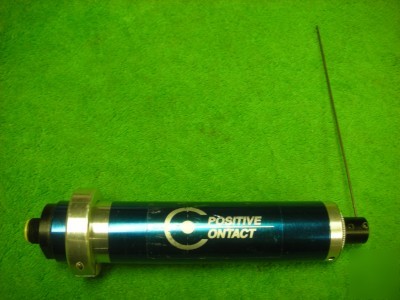

Pcs-100 positive contact sensor tool monitor detector
PCS-100 POSITIVE CONTACT SENSOR TOOL MONITOR DETECTOR
One compact SCU 100 Control Box is required for each PCS 100 Sensor utilized. Supply Voltage: either 24V DC (250 mA) or 110/240 VAC with optional power supply. Operating temperature: 0-55 C.
* Object Presence Monitoring or Free Space Monitoring
* 0-180 mechanically adjustable swing range
* Direct Drive (no gear box) High Precision DC Motor
* CW or CCW swing direction by selector switch
* Disregards tool to tool diameter differences in CNC machine applications
* Completely sealed against liquid and solid contaminants. Highest IP rating
* Speeds exceeding 200 cycles/minute
* Maxi Life needle in standard or special length
Standard: 140 mm (5.5 in.)
* 90 or straight, molded 4 pin connector/cable
Cable lengths to 75m (246')
Standard length is 5m (16')
* Micro tool and micro drill sensor capability
Don't miss your chance to own this item now!
