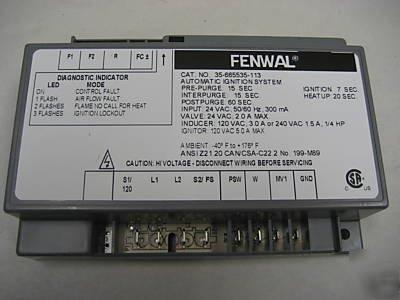

Fenwal 35-665535-113 hot surface ignition control
FENWAL 35-665535-113 (UNI-LINE ORDER NUMBER 833-002)
REPLACES FENWAL: 05-332461-103 SPECIFICATIONS: AUTOMATIC IGNITION SYSTEM INPUT: 24 VOLTS AC, 50/60 Hz, 300 mA VALVE: 24 VOLTS AC, 2.0 A MAX INDUCER: 120 VOLTS AC, 3.0 A OR 240 VOLTS AC 1.5 A , 1/4 HP IGNITOR: 120 VOLTS AC 5.0 A MAX PREPURGE: 15 SECONDS INTERPURGE: 15 SECONDS POSTPURGE: 60 SECONDS IGNTION TIMING: 7 SECONDS HEAT UP : 20 SECONDS
