20WATT pll vhf tv television broadcast transmitter lptv

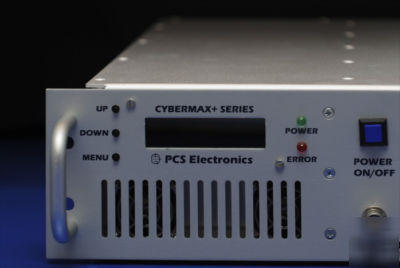

Cybermax TV+ 20Watts VHF TV TRANSMITTER in 19 inch rack mount boxed enclosure
UP for sale is a brand new, fully boxed and assembled unit in large 2H 19" inch rack mount metal case, Phase locked loop (PLL), 20 Watts typical output VHF TV transmitter for higher VHF channels (175-225MHz), direct from manufacturer, PCS electronics in Europe.
Also available: stereo encoder add-on board for this transmitter for USA/NTSC or PAL/SECAM operation, and for ALL PCS TV transmitters. See my other items.
Also available: 1/4 Wave groundplane VHF TV antenna for this and other PCS VHF TV transmitters or any LPTV VHF transmitter. See my other items.
For more information on TV systems in use worldwide, check out this link:
http:// /articles/world-wide-tv-standards
http://www.paradiso-design.net/TVsystems_worldwide.html
Here's a guide to analog TV systems specifications and VHF/UHF channel allocations and frequencies in different countries (576 KB).
http://tb.fileave.com/a/guide.jpg
See full blown picture: Picture
* Here's the link to this item's page on manufacturer's web site:
http:// /cybermax-transmitter-p-1365.html
* Here's the original description from PCS electronics:
OUR POPULAR CYBERMAX SERIES NOW ALSO FOR TV!
Our CYBER MAX TV+ series is out, finally with a range of nicely priced TV transmitters for small TV stations. Build your own TV studio and broadcast your own TV program! Transmit movies from your PC to your living room, re-transmit the TV program you've never been able to receive in your valley, run a college TV station, cover rural areas of Africa with TV signal from satellite stations, run a hotel cable system info pages or just have fun... this unit will keep you busy during the cold winter evenings and is sure to provide lots of fun for many months to come!
This unit in a 2H 19" rack enclosure offers 20W of power in the upper VHF end (175-225MHz). Unit is rugged and made for 24/7/365 operation and runs from mains voltage (110-240V/50-60Hz) Gives from several hundred meters up to about 10km of range depending on antenna type used on transmitting and receiving side. High-gain yagi antennas on both sides might offer even more range in favorable conditions. In our opinion the best quality/price ratio possible.
Look HERE for all manuals, drivers and support.
- Uses our standard 19" 2H rack
- Built-in CPU for controlling and monitoring
- Adjustable TV channel (via LCD module with up/down keys)
- Easily adjustable TV and sound standard (via LCD module)
- Built-in test signal generator
- Supports all analog world TV standards: All PAL versions, SECAM, NTSC
- Stereo sound possible with stereo board
- Output power: 20W typ, adjustable from 0 to Pmax via internal trimmer
- Output impedance 50 Unbalanced, VSWR less than 2:1 for full output
- Output connector BNC female ( rear panel )
- Frequency range model HIGH: TV VHF HIGH band 175-225MHz
- Audio connectors: RCA (cinch)
- Audio input impedance: 10K resistive, unbalanced
- Power supply: Mains 110-240V/50-60Hz universal, PC style mains cable
What is the DSP Stereo Encoder for USA/NTSC?
- This add-on card enables stereo sound, it was designed for NTSC system, used in USA and most of South/North America.
What is the PAL/SECAM stereo encoder?
- This add-on card enables stereo sound for PAL/SECAM TV standard.
