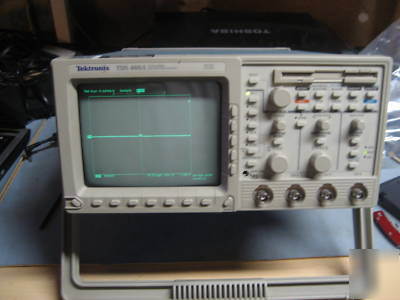

Tektronix tds 460A 400 mhz 4 channel dgtl oscilloscope
* Be Confident You Are Seeing Actual Signals with up to 400 MHz Bandwidth and 1.5% Accuracy
* Capture Transient Events to the Full Scope Bandwidth with Its 100 MS/s Sample Rate
* Record Lengths to 120 K (Opt. XL)
* Speed Up Your Circuit Analysis with 25 Built-in Automatic Measurements and Extended Waveform Math/FFT (Opt. XL)
* Roll Mode Allows You to See Acquired Data Points Without Waiting for the Acquisition of the Complete Waveform
* Use the Video Trigger Mode to See NTSC, PAL, SECAM Signals or Your Own Custom Video Signals
* Capture Those Glitches with the 10 ns Peak Detect Mode
* ADA400A Analog Differential Amplifier (10 V/div sensitivity)
* P5200/P5205/P5210 High Voltage Differential Probes (up to 5600 V) for Floating Measurements
* (Please see Differential Preamplifier ADA400A and High Voltage Differential Probes, P5200, P5205, and P5210 for details on ADA400A, P5200, P5205 and P5210)
* Be Confident You Are Seeing Actual Signals with up to 400 MHz Bandwidth and 1.5% Accuracy
* Capture Transient Events to the Full Scope Bandwidth with Its 100 MS/s Sample Rate
* Record Lengths to 120 K (Opt. XL)
* Speed Up Your Circuit Analysis with 25 Built-in Automatic Measurements and Extended Waveform Math/FFT (Opt. XL)
* Roll Mode Allows You to See Acquired Data Points Without Waiting for the Acquisition of the Complete Waveform
* Use the Video Trigger Mode to See NTSC, PAL, SECAM Signals or Your Own Custom Video Signals
* Capture Those Glitches with the 10 ns Peak Detect Mode
* ADA400A Analog Differential Amplifier (10 V/div sensitivity)
* P5200/P5205/P5210 High Voltage Differential Probes (up to 5600 V) for Floating Measurements
* (Please see Differential Preamplifier ADA400A and High Voltage Differential Probes, P5200, P5205, and P5210 for details on ADA400A, P5200, P5205 and P5210)
The highly featured, portable and easy to use TDS420A, 430A and 460A personal lab scopes are ideal for simple to complex applications, including electro-mechanical research and analysis, power electronics/power supply design, bio-physical research and analysis, and digital and analog design. With its standard video trigger capability, the scopes are ideal instruments for measuring video signals including NTSC, PAL and SECAM.
