> lathe instruction manual logan no. 815-816-820-821
lathe instruction manual logan no. 815-816-820-821
Metal lathe instruction manual basic set up Logan

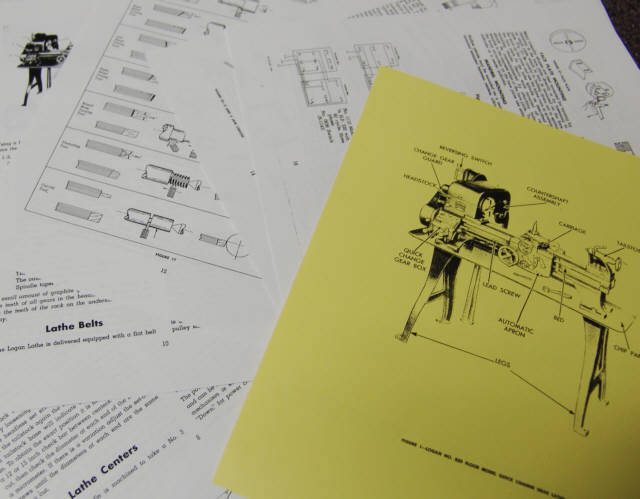

* Manual furnished with the Logan lathes No. 815-816-820-821 metal lathes. 16 pages of set up, maintenance and use of these Logan lathes. Descriptions and photos of lathe components (back gears, power feed, carriage, etc) Quick Change gear/longitudinal chart for thread cutting. Cutting tools, lathe tool bit shapes and set up. Motor and switch wiring diagrams for 110, 220 and 440-3 three phase. Four pages on operating and maintenance of the Universal chuck (3 jaw) and independent chuck (4 jaw). 20 total pages of copies of original Logan lathe information, era late 40's early 50's, two-sided printing on 24 lbs heavy weight paper with card stock cover page and punched for three ring binders. Great info if you have bought a used machine with out original set up information or getting started in metal turning and looking for some basic turning info for any metal lathe.
