Stanford research DS340 function generator

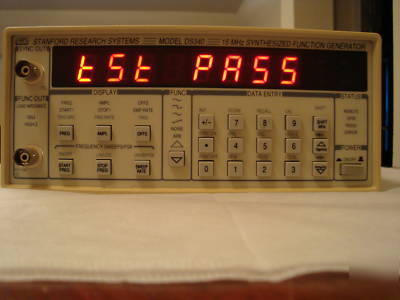

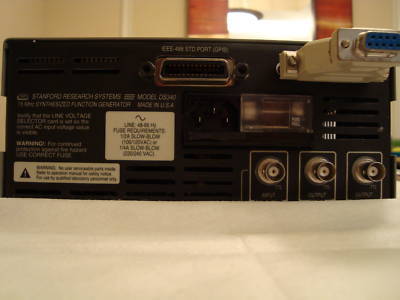

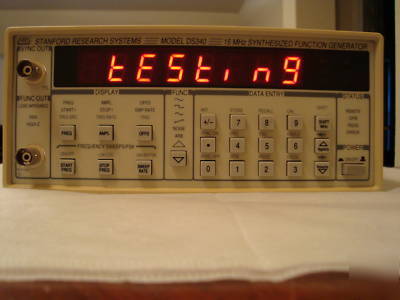

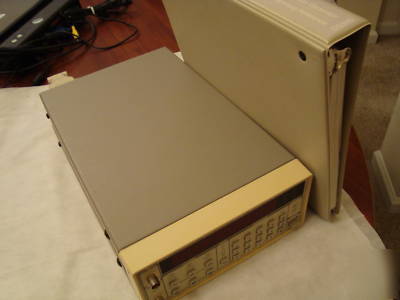

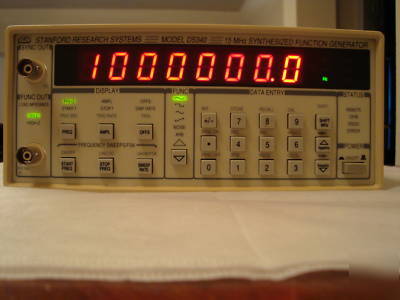

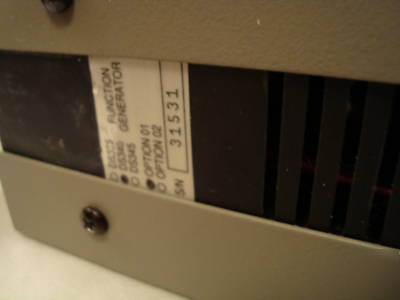

Uesed but in very good condition. Please check out the photos. Comes with original manual.
DS340 Function & arbitrary waveform generator
* 1 Hz to 15.1 MHz frequency range
* 1 Hz frequency resolution
* Sine, square, ramp, triangle and noise
* Phase continuous frequency sweeps
* 16,300 point arbitrary waveforms
* Optional RS-232 and GPIB interfaces
The DS340 is a 15 MHz function and arbitrary waveform generator based on Direct Digital Synthesis (DDS). A combination of features, performance and low cost make the DS340 ideal for a variety of test and measurement applications.
Sine waves and square waves can be generated at frequencies up to 15.1 MHz, and ramps and triangles up to 100 kHz. Frequency resolution is 1 Hz for all functions. The DS340 also includes a 10 MHz Gaussian white-noise generator.
Up to 16,300 arbitrary waveform points can be downloaded to the DS340's waveform memory via the optional GPIB or RS-232 interfaces. PC software is provided for for composing, editing and downloading arbitrary waveforms. The waveform memory can be played back at rates up to 40 Msamples/s.
Both internal and external FSK modes allow the output frequency to be rapidly toggled between two preset values. FSK toggling can be done internally (at rates up to 50 kHz), or externally via a rear-panel input.
Arbitrary Waveform Composer (AWC) software is provided at no charge. AWC is a simple, menu-based program which lets you create and edit arbitrary waveforms on the screen, store them and download them to the DS340. Click here for the latest version of the Windows AWC software.
