Sorensen xantrex DLM8-450 4KW dc power supply gpib 450A

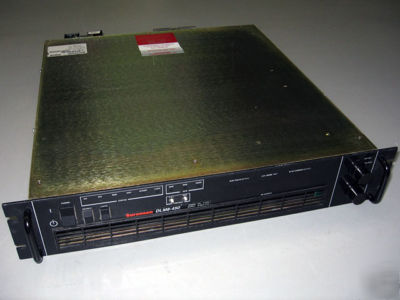

Sorensen DLM8-450 4kW DC Power Supply
The DLM 4 kW Series programmable DC power supplies are designed to provide highly stable, continuously variable output voltage and current for a broad range of applications in a compact 2U ( 3 inches) high chassis. The 4 kW power rating is new to the Sorensen Family of power supplies. The output RMS noise is as low as 10 mV. The output will recover to 1% of its steady-state voltage within 1 ms for a step load change of 100% to 70% or 70% to 100%.
This unit has the following specfications:
* Voltage: 6 mV (0.05% of Vmax + 2 mV)
* Current: 450 mA (0.1% of Imax)
* Voltage: 0.05V (0.5% of Vmax + 1 Count)
* Current: (0.75% of Imax + 1 Count)
* M9E - IEEE-488.2 amd RS-232 Interface
This unit is in physical and electrical good condition. It has been tested by an onstaff engineer and is in good working order. It comes with a 14 Day Guarantee against DOA from receipt.
