Hendrick borter point to point machining center
Hendrick Borter Point to Point
Demo Model, Show Machine. Never Sold. Extremely Accurate & Very High Speed
Model: Hendrick Borter Point to Point Machining Center

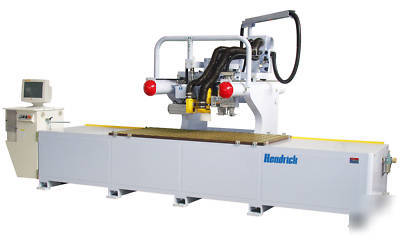

Heavy duty fixed table design with high speed C Frame moving bridge.
The machine base and bridge incorporate heavy-duty welded steel plate, steel tube, and contiguous beam construction providing rigidity and stability. All precision component mounting surfaces are precisely machined on CNC machining centers. THK rectangular way bearing and ball screw systems are utilized. All ball screw components are anti-backlash to provide the highest level of accuracy.

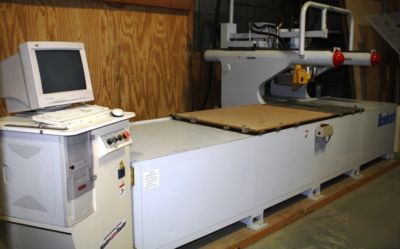

One 1 meter x 2 meter (40 x 80 ) fixed work table. Plenum style vacuum ready table (for material hold down) with heavy-duty phenolic table surface over steel structure. Round holes with stoppers for zoning and pod fixturing included.

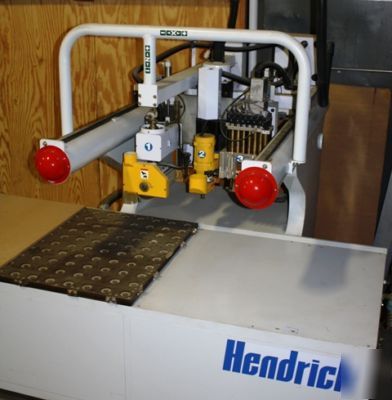

#1: 5HP Saw Head with 0 90 Degree Swivel #2: 5HP High Frequency Router Head 3000 18000 RPM #3: 2HP 9 Spindle Boring Head with Independent Spindle Operation
7 Vertical Boring Spindles with 32mm Centers (6 & 2 by Axis)
2 Double Ended Horizontal Boring Spindles (One X Axis, One Y Axis)
Axes Drives: X = Heavy duty THK precision ball screw. Y = Heavy duty THK precision ball screw. Z = Heavy duty THK precision ball screw.
X = 25 meters per minute Y = 25 meters per minute Z = 6 meters per minute
All CNC precision ground, hardened steel THK
rectangular linear way system with roller linear bearings.
3 axes simultaneous AC servo drives on each X, Y, and Z
axes. Powerful Yaskawa AC Servos.
Powerful Windows based control system with full color CRT display. Large program storage capacity. Built in easy programming software included. Tool path graphics, background editing, manual overrides, built in diagnostics. RS232C & LAN interface. International standard machine code language (G & M) for interface with all industry standard CAD/CAM programming software packages. Remote control mounted on machine table for Program Start, Vacuum On, EStop included.
5 HP roots type rotary screw vacuum pump. Muffler and pressure release valve included.
100lbs. compressed air at 10CFM.
Original List Price: $70,500.00
