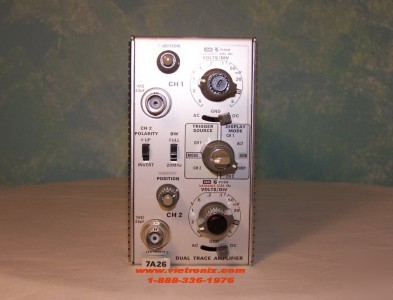

Tektronix 7A26 dual traces amplifier plug-in module
Tektronix 7A26 Dual Traces Amplifier Plug-in Module
Descriptions and features: The Tektronix 7A26 is a dual-trace amplifier which provides a bandwidth of 200 MHz in the 7900 and 7000 Series mainframes. Bandwidth is constant over the entire range of deflection sensitivities of 5 mV/div to 5 V/div. Bandwidth may be limited to 20 MHz to reduce displayed noise in lower-frequency applications. It can also be used in any of the other 7000 Seires mainframes but bandwidth will be limited to the bandwidth of the mainframe. The 7A26 features five operating modes, trigger source selectablity and trace-identify.
The Tektronix 7A26 is one of our used Amplifier Plug-Ins that is one of the most popular plug-ins used today for the 7000-Series Oscilloscope Mainframes.
Dual-Trace Plug-in Amplifier.
5 mV/div to 5V/div Deflection Factors.
Bandwidth May be set at Full of limited to 20MHz for low frequency applications.
