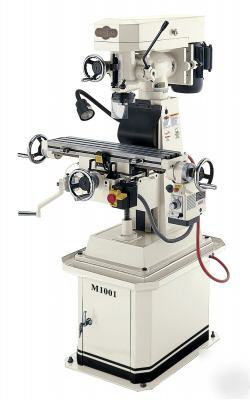

Shop fox® M1001 1-1/2HP vertical mill w/ power feed
This is the Brand New in the crate
M1001 - SHOP FOX Vertical Mill 6" X 26"
This knee mill is great for the small shop that wants a compact unit! It features a 1-1/2 HP motor with 9 speeds ranging from 240 to 2760 RPM. A variable speed power feed with rapid override efficiently moves the 6-1/8" x 26" table back and forth along its 15-7/8" travel. Both the head and column rotate 45 in both directions. A single shot lubrication system makes maintenance quick and easy!
* High precision-ground vertical and cross ways
* Head tilts to 45 both ways. 90 rotation on horizontal surface
* Motor size: 1-1/2 HP, 110V, single-phase, TEFC
* Max. distance spindle to table: 12-1/2"
* T-Slots: 3 on 1-9/16" centers, 3/8" studs
* Table travel (longitudinal): 15-5/8"
* Max. drilling capacity for cast iron: 1"
* Max. drilling capacity for steel: 3/4"
* Ram swiveling angle: 45 R & L
* Range of speeds: 240-2760 RPM
* Overall dimensions: 66-5/8" H x 41" D x 45-1/2" W
