Etcon wire sorter ws 144 30 wire sorter

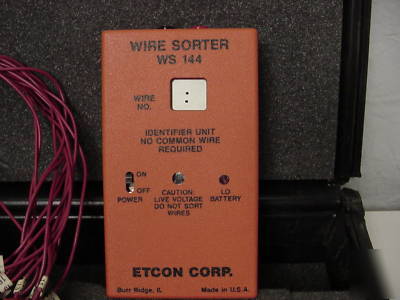

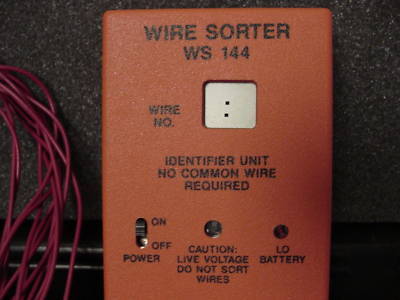

The WS144 makes sorting a one-person operation. Attach the numbered leads to one end of de-energized wires. Attach identifier unit leads at opposite end to receive immediate LCD display of wire number.
* WS144 sorts up to 30 wires with no known ground path.
Maximum wire length based on 250 ohm maximum load: 24 awg 1 mile, 12 awg 14.9 miles.
* Field replaceable 9 volt alkaline batteries.
* Operating temperature 0 C - 40 C (32 F - 104 F).
* Open circuit and short circuit indication.

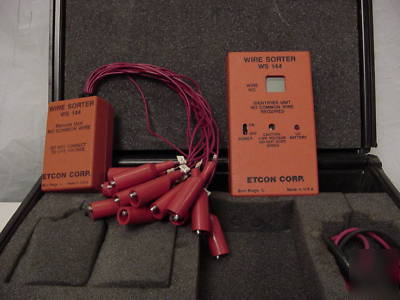

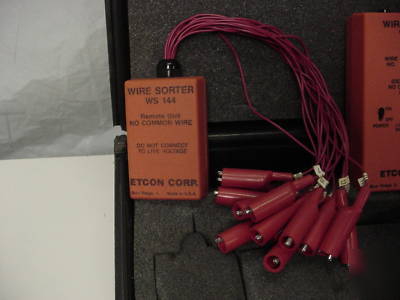

* Includes identifier unit, remote unit for wires,
1-15 leads, carrying case and operators manual.

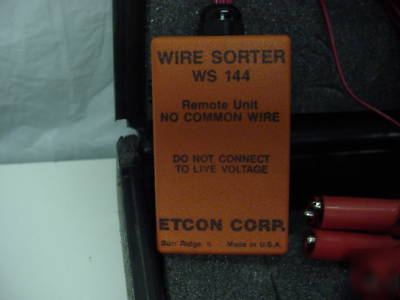

* WS144-30 remote unit for wires 16-30.
