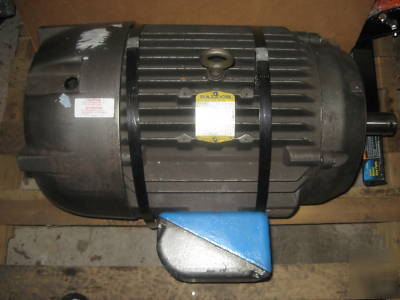

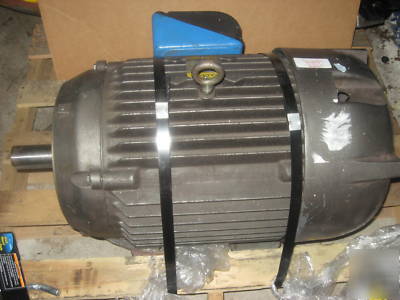

Baldor motor 30 hp, 220/440 v, 79/39.5 amp, 1760 rpm
Keyway width: 0.500 inches nominal single end
Keyway depth: 0.500 inches nominal single end

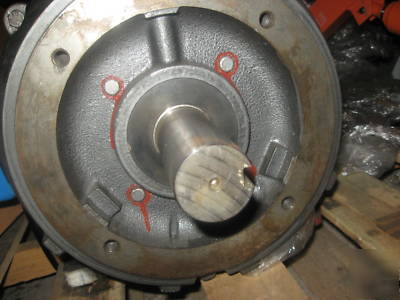

Shaft diameter: 1.875 inches nominal single end
Keyway length: 3.250 inches nominal single end
Inclosure feature: Totally inclosed
Power rating: 30.000 horsepower input
Length of shaft from housing: 4.380 inches single end
Temp rating: 40.0 ambient Deg C
Rotor speed rating in RPM: 1760.0 single no load
Shaft end characteristic: A9 single style single end
Frequency in hertz: 60.0 input
Design control reference: 10C102W374
