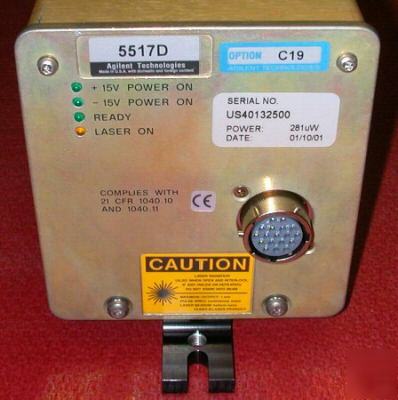

Hp agilent 5517D laser head C19 asml/svg 4022.454.71615
Other options Avaliable: C01, C16, C19, C29
. Max Velocity with Linear Optics: 1000 mm/sec Reference frequency: 3.4 to 4.0 MHz Weight: 3.4 kg (7.5 lb) Clearance required for cabling: 12.00 cm (4.72 in) beyond back of unit
Diameter: 6 mm (0.25 in) Minimum Output Power: 180 uW (standard) Minimum Output Power: 300 uW (option H01)
. +15V 0.3V at 2.2A maximum -15V 0.3V at 0.02A maximum Warm-up Dissipation: 35W Operating Dissipation: 23W
