Digital interface kit for amateur radio (ham radio)
Work Digital Modes on your HF SSB Ham Rig using your PC's sound card!
This Interface Kit will enable you to work virtually all the digital modes including: PSK, MSK, RTTY, Olivia, MT63, SSTV, Helschriber, CW and many others. It comes with features not found on many interfaces costing much more including:

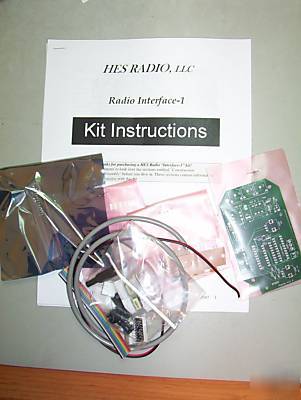

* All parts, an assembly manual and rig hookup information.

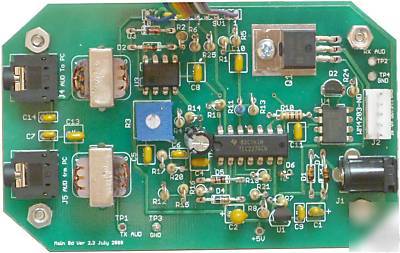

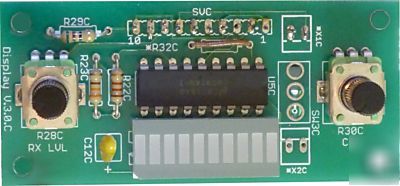

* You get 2 professional quality circuit boards- a Main board and a separate Display board that has all the controls and Bar Graph.
* Built in VOX - PTT works off of the audio signals a serial interface is not needed.
* Transformer isolation for both the receive and transmit signals. Eliminates potential noise problems.
* Receive and transmit level controls
* Visual calibration monitor (LED Bar Graph)
* Visual transmit signal monitoring
* Low power consumption ideal for portable operation. Will run off a 9-volt alkaline battery for up to 10 hours.
* MOSFET PTT circuit easily handles 1.0 amp at up to 75 VDC.

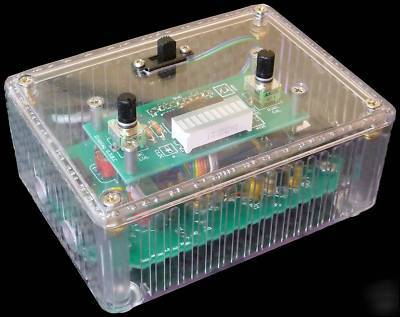

The enclosure shown is not included. I do offer enclosures. Please contact me if desired.
FREE Tech Help ****@verizon.net
Returns policy - 7 days money back.
Download a Free Manual at http://mysite.verizon.net/res11amat/
By the way, you did a beautiful job on this kit.
"I have made several contacts with it including my very first HellSchreiber QSO."
"Once again I think you did an exceptional job with this kit and I plan to demonstrate it at the
next local amateur radio club meeting."
This is a kit, you should be familiar with electrical soldering.
