New icom ic-RX7 -10 wide exp receiver scanner unblock

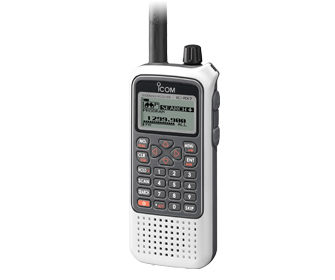

ICOM IC-RX7 IPX4 Splash resistant Wideband EXP CE Receiver Scanner
* IC-RX7 receiver (0.150 1300.000MHz)
* BP-244 Lithium Ion battery 3.7 V 1100 ma
* MB-112G Alligator belt clip
* BC-149A AC Wall Adapter 6VDC 1000ma (we can offer converter to 220-240V AC adapter need extra USD$10- for it)
Menu-Driven User Interface and Easy-to-See Category Icons
The 4-Way cursor buttons provide quick and easy navigation.One-Touch Search ButtonEasily detects new active channels within a designated frequency range or fixed category.
The link scan dynamically adds and deletes a category or a group to the scan list, even while scanning.
Efficient 3-Level Memory Management
A total of 1600 memory channels can be classified in 3 levels: by "Category" (up to 26 categories), by "Group" (up to 100), and "Memory name" (up to 100).
Computer Programmable with Optional CS-RX7 Software
0.150-1300MHz Wide Frequency Coverage
Slim, Stylish and Light Weight
Only 23 mm (29/32 in) slim depth and weighing just 200g (7.1oz (approx) with BP-244 and antenna).
Tone control function and audio filter*
* Splash resistant construction equivalent to IPX4
* Large, backlit full dot-matrix display
* High speed scan and high speed search (100ch/sec.)
* CTCSS/DTCS decode with pocket beep function
* VSC (Voice Squelch Control)
* Built-in RF-gain control and attenuator
* Earphone antenna function for FM broadcast RX
* DC power jack for external DC operation
5, 6.25, 7.5, 8.33*, 9*, 10, 12.5, 15, 20, 25, 30, 50, 100, 125 and 200kHz
(* Selectable depending on operating bands.)
4.5V DC (LR6 (AA) 3 cells with BP-262)
(1600 regular, 25 scan edges and 200 automatic write memory)
(W H D; projections not included)
FM (12dB SINAD, 1kHz, 3.5kHz deviation)):
1.625 4.995MHz Less than 0.56 V
5.000 246.995MHz Less than 0.4 V
247.000 832.995MHz Less than 0.56 V
833.000 1300.000MHz Less than 0.79 V
WFM (12dB SINAD, 1kHz, 52.5kHz deviation):
76.000 108.000MHz Less than 1.8 V
175.000 221.995MHz Less than 1.8 V
470.000 770.000MHz Less than 2.5 V
AM (10dB S/N, 1kHz 30% modulation with external antenna):
0.495 4.995MHz Less than 2.5 V
5.000 29.995MHz Less than 1.8 V
118.000 136.000MHz Less than 1.8 V
222.000 246.995MHz Less than 1.8 V
247.000 329.995MHz Less than 1.8 V
(at 3.7V DC, 10% distortion, 70% modulation with an 8 load)
3-conductor 3.5 (d) mm ( 1 8" ) /8
