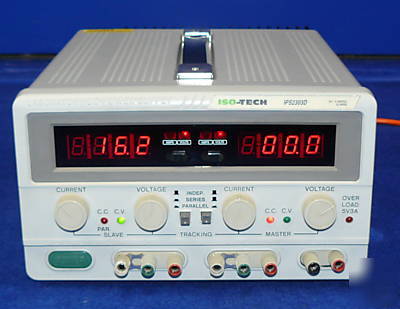

Iso-tech IPS2303 dual power supply dc
Iso-Tech IPS2303 Dual Power Supply DC
The regulated DC power supply series is designed to be used in applications such as
powering operational amplifiers, push-pull stages, logic circuits and systems where plus and minus voltages are required to track with an insignificant error. To provide operating
convenience, the IPS-2303 has two independent power supplies housed in a single package.
The IPS-2303 consists of two identical, independent, adjustable DC power supplies.
A front panel switch selects one of three operation modes of independent, series and parallel. In the independent mode, the output voltage and current of each supply are controlled separately, and each supply is isolated up to 300V from output to chassis or output to output. In the tracking mode, both outputs are automatically connected in series or parallel, and the controls of the left supply adjust the magnitudes of both the positive and negative output voltages. Because the outputs are connected in a tracking configuration, any internal disturbance in the master supply (such as drift or ripple) will cause an equal change in the outputs of both the supplies.
Each power supply is a completely transistorized, well-regulated, constant voltage / constant current supply that will provide full rated output voltage at the maximum output current or can be continuously adjusted throughout the output range. The front panel current controls can be used to establish the output current limit (overload or short circuit) when the supply is used as a constant voltage source (independent or tracking modes) and the voltage controls can be used to establish the voltage limit (ceiling) when the supply is used as a constant current source (independent mode only). The supply will automatically cross over from constant voltage to constant current operation (current limited operation in the tracking mode). Each power supply has its own front panel meter that can measure output voltage or current.
Iso-Tech IPS2303 Dual Power Supply DC Features
Independent, isolated DC outputs
Auto series, parallel and tracking operation
Constant voltage and current operation
Overload and reverse polarity protection
Selectable for continuous/dynamic load
Fan speed control circuit minimises fan noise
For full specifications and manual:
http://docs-europe.electrocomponents.com/webdocs/0956/0900766b80956d06.pdf
Iso-Tech IPS2303 Dual Power Supply DC Dimensions
