Bridgeport ez-trak dc 2-axes cnc vertical mill milling

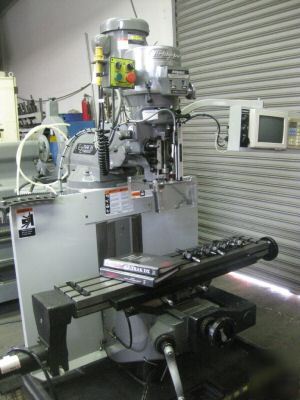

Bridgeport EZ-Trak CNC Vertical Milling Machine
In pristine condition both working & cosmetically. This is one of the nicest EZ-Traks around & comes loaded with tooling & features. Everything has been tested on this machine & is in 100% working condition.
- This is the EZ-TRAK CNC Milling Machine. Combine the Series I with an easy-to-use control, and you have the EZ TRAK CNC. With the EZ TRAK, operators can alternate between manual and automatic milling as their application demands. Its two-axis control has a fully adjustable, flat screen Monitor that prompts for all machining data and signals the operator when an action is required.
- The control can store up to 1,000 operations. The EZ TRAK also features a powerful 2 HP spindle motor, large table travel, and automatic cutter compensation so you can use those reground milling cutters. Chrome-plated ways with covers and a centralized, one shot lubrication system ensure a long machine life.
Bridgeport EZ Trak DX 2-Axis CNC Mill
Table to spindle nose 18.25" Max
Spindle Taper Qwik Switch-30 Taper
Spindle speeds (low/high) 60-500 / 500-4200 rpm
Auto positioning (X/Y) 100 ipm
Feedrate range (X/Y) .1-100 ipm
Positioning Accuracy +/- .001" over saddle
Postiioning Repeatability +/- .0008" over saddle
# Rigid, One-Piece Column and Base Integrally Cast with Added Ribs.
# Proven resale value! High demand caused many used Series I standards to sell for more than their original purchase price.
# Versatile-totally interchangeable parts. You choice of a full line of high productivity accessories and heads.
# Full support. Bridgeport stands behind every machine with nationwide parts and service, and application engineering support.
# Patented flow-through air cooling on 2J head prolongs bearing life and prevents expansion caused by heat build-up.
# Secure tools from 1/8" to 3/4" in a R8 collet.
# A quick adjustment micrometer nut allows rapid adjustment of the quill for long moves and can also be adjusted for fine positioning of .001".
# Sturdy, coreless cast table, heavily ribbed for strength.
# Precision ways on column, knee and table. Tapered, hand-scraped gibs, hand-fitted for long life accuracy. Locking clamps let you mill mild steel at 2 cu. in./min. with minimum vibration. One piece column and base with extra ribs and webs.
# Dual saddle and knee locks. Satin chrome-plated dials.
# Precision spindle bearings and 5 pitch acme thread leadscrews.
# Powerful 2 Horsepower (3 Horsepower for 30 min.) spindle motor.
# EZ-TRAK DX Control with CRT (3-Axis DRO and 2-Axis CNC Operation).
